Brake Pedal and Bracket: Notes

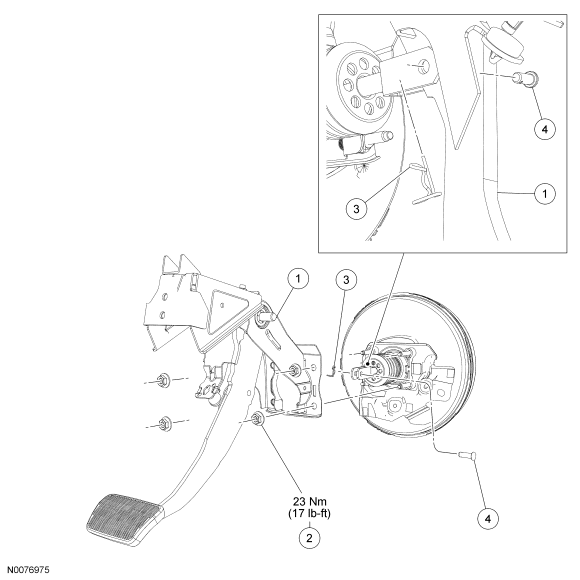

Fig 1: Identifying Brake Pedal and Bracket

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	2455	Brake pedal and bracket
2	W707144	Brake pedal bracket nut (4 required)
3	7B096	Brake booster push rod pin clip
4	2N513	Brake booster push rod pin

CAUTION: Do not remove or loosen the fasteners that hold the 2 brake pedal bracket halves together. Failure to follow these instructions may result in damage to the brake pedal bracket.

Fig 2: Locating Fasteners On Brake Pedal Bracket Halves

Courtesy of FORD MOTOR CO.
