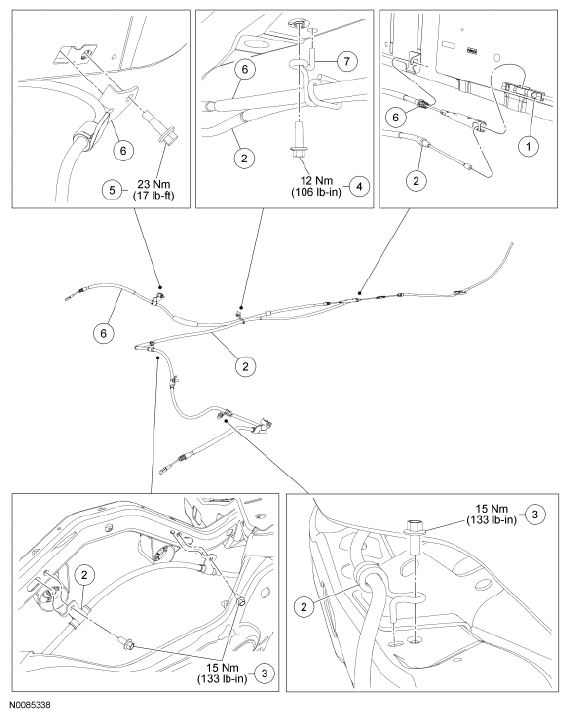

Parking Brake - Exploded View
PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Cable-to-cable union (part of 2853) |
| 2 | 2A635-B | Parking brake cable (RH) |
| 3 | W505261 | Parking brake cable bracket bolts (3 required) |
| 4 | W505255 | Parking brake cable wireform bracket bolt |
| 5 | W506423 | Wheel well parking brake cable bracket bolt (2 required) |
| 6 | 2A635-A | Parking brake cable (LH) |
| 7 | - | Parking brake cable wireform bracket (part of 2A635) |
Fig 2: Exploded View Of Parking Brake Control Unit And Parking Brake Switch With Torque Specifications
PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Parking brake switch screw (part of 15A51) |
| 2 | - | Parking brake switch electrical connector (part of 14A005) |
| 3 | 15A851 | Parking brake switch |
| 4 | W712977 | Parking brake control bolt (2 required) |
| 5 | W709990 | Parking brake control nut |
| 6 | 2780 | Parking brake control |
- For additional information, refer to the appropriate procedures.
