Instrument Panel Upper Section

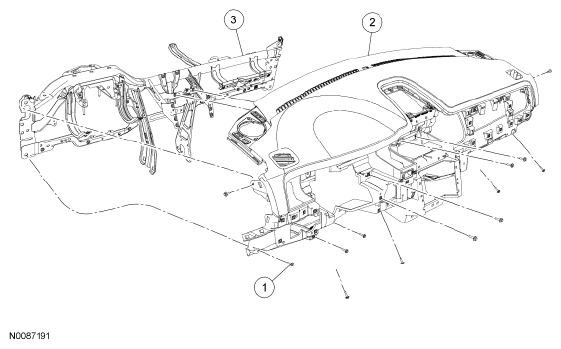

Fig 1: Exploded View Of Instrument Panel Upper Section
G06077403Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 W707628 Instrument panel upper section screw (13 required)
2 04320B Instrument panel upper section
3 04545 In-vehicle crossbeam
