Instrument Panel Cluster (IPC): Notes

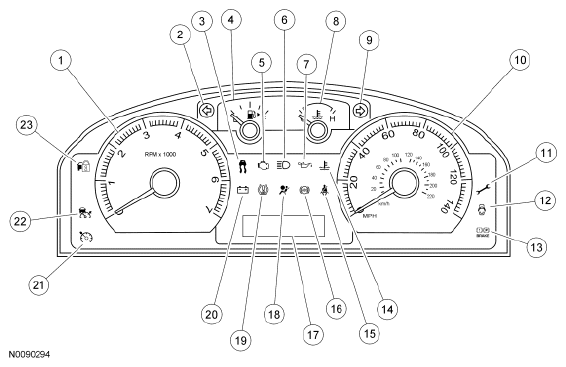

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Tachometer |
| 2 | - | LH turn indicator |
| 3 | - | Traction control indicator |
| 4 | - | Fuel gauge |
| 5 | - | Malfunction Indicator Lamp (MIL) |
| 6 | - | High beam indicator |
| 7 | - | Low engine oil pressure warning indicator |
| 8 | - | Engine coolant temperature gauge |
| 9 | - | RH turn indicator |
| 10 | - | Speedometer |
| 11 | - | Powertrain malfunction (wrench) warning indicator |
| 12 | - | Door ajar warning indicator |
| 13 | - | Brake warning indicator |
| 14 | - | Engine over-temperature warning indicator |
| 15 | - | Safety belt warning indicator |
| 16 | - | ABS warning indicator |
| 17 | - | Message center display area |
| 18 | - | Air bag warning indicator |
| 19 | - | Tire Pressure Monitoring System (TPMS) warning indicator |
| 20 | - | Charging system warning indicator |
| 21 | - | Speed control indicator |
| 22 | - | Adaptive cruise control indicator |
| 23 | - | Anti-theft indicator |
NOTE:
The Smart Junction Box (SJB) is also known as the Generic Electronic Module (GEM).
The Instrument Panel Cluster (IPC) has a full function message center (identified by the 3-button message center switch). The IPC contains gauges, informational indicators and warning indicators that are designed to provide the driver with system status and to alert the driver that certain conditions exist in the vehicle.
The IPC uses a message center display area for basic informational items such as the odometer and trip odometer and for the text-based message center display information.
