Instrument Cluster (IC): Notes

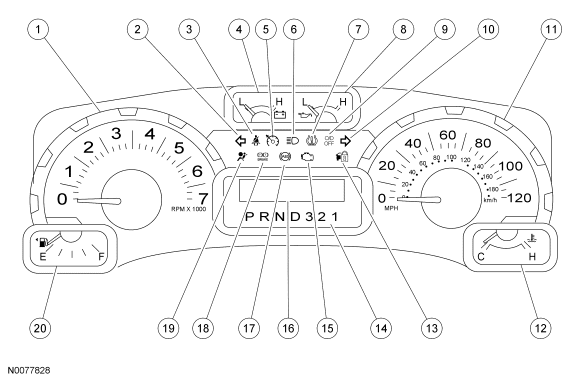

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Tachometer |
| 2 | - | LH turn indicator |
| 3 | - | Safety belt warning indicator |
| 4 | - | Voltmeter |
| 5 | - | Speed control indicator |
| 6 | - | High beam indicator |
| 7 | - | Tire pressure monitoring system (TPMS) warning indicator |
| 8 | - | Oil pressure gauge |
| 9 | - | Overdrive (O/D) off indicator |
| 10 | - | RH turn indicator |
| 11 | - | Speedometer |
| 12 | - | Temperature gauge |
| 13 | - | Anti-theft indicator |
| 14 | - | PRNDL indicator |
| 15 | - | Malfunction indicator lamp (MIL) |
| 16 | - | Message center |
| 17 | - | ABS warning indicator |
| 18 | - | Brake warning indicator |
| 19 | - | Air bag warning indicator |
| 20 | - | Fuel gauge |

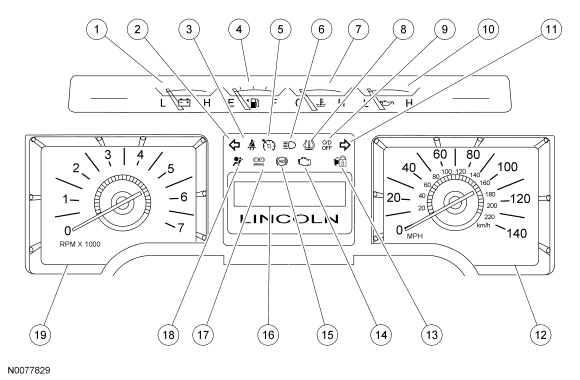

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Voltmeter |
| 2 | - | LH turn indicator |
| 3 | - | Safety belt warning indicator |
| 4 | - | Fuel gauge |
| 5 | - | Speed control indicator |
| 6 | - | High beam indicator |
| 7 | - | Temperature gauge |
| 8 | - | Tire pressure monitoring system (TPMS) warning indicator |
| 9 | - | Overdrive (O/D) off indicator |
| 10 | - | Oil pressure gauge |
| 11 | - | RH turn indicator |
| 12 | - | Speedometer |
| 13 | - | Anti-theft indicator |
| 14 | - | Malfunction indicator lamp (MIL) |
| 15 | - | ABS warning indicator |
| 16 | - | Message center |
| 17 | - | Brake warning indicator |
| 18 | - | Air bag warning indicator |
| 19 | - | Tachometer |
The instrument cluster (IC) contains gauges, informational indicators, warning indicators and message center indicators that are designed to provide the driver with system status and to alert the driver that certain conditions exist in the vehicle.
The instrument cluster (IC) uses a 2-line vacuum fluorescent display for display of basic informational items such as the odometer and trip odometer and for the message center display information.
All indicator lamps and warning indicator lamps are light-emitting diodes (LED), which are not replaceable.
