Removal And Installation

WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the screws to the rear window latch. For additional information, refer to GLASS, FRAMES AND MECHANISMS article.
Position the latch aside.

Fig 1: Positioning Latch Aside

Courtesy of FORD MOTOR CO.

NOTE: The weatherstrip must be removed. It is fastened on top by a pushpin.

Pry the upper trim panel to remove.
Remove the screws and the scrivets.

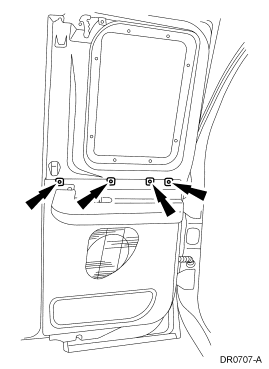

Fig 2: Locating Screws And Scrivets

Courtesy of FORD MOTOR CO.

CAUTION: Do not pull directly outward on rear door trim panel, as damage will occur.

Pull straight up to remove the rear door trim panel.

CAUTION: Insert the lower panel tabs first or they can break when installing the rear door trim panel.

To install, reverse the removal procedure.
