Brake Booster: Notes

NOTE: Non-roll stability control equipped shown, roll stability control equipped similar.

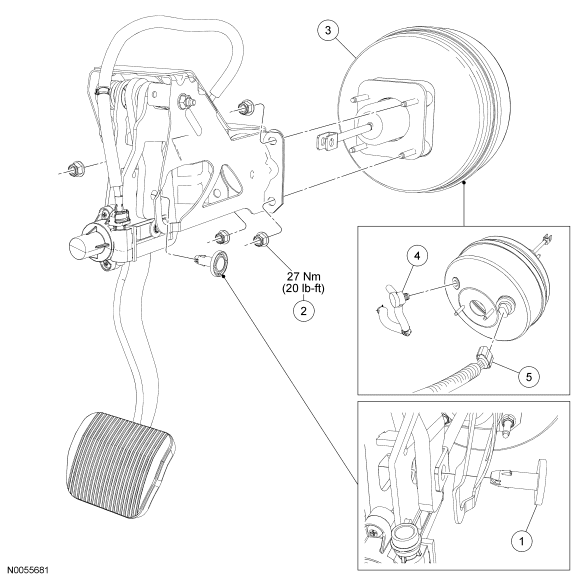

Fig 1: Exploded View Of Brake Booster With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	2L523	Brake pedal pin
2	W520212	Brake booster-to-pedal bracket nut (4 required)
3	2005	Brake booster
4	9C490	Manifold vacuum outlet assembly
5	-	Pedal travel sensor electrical connector (part of 14A464)
