Brake Pedal and Bracket: Notes

NOTE: Adjustable brake pedal and bracket shown, fixed brake pedal and bracket similar.

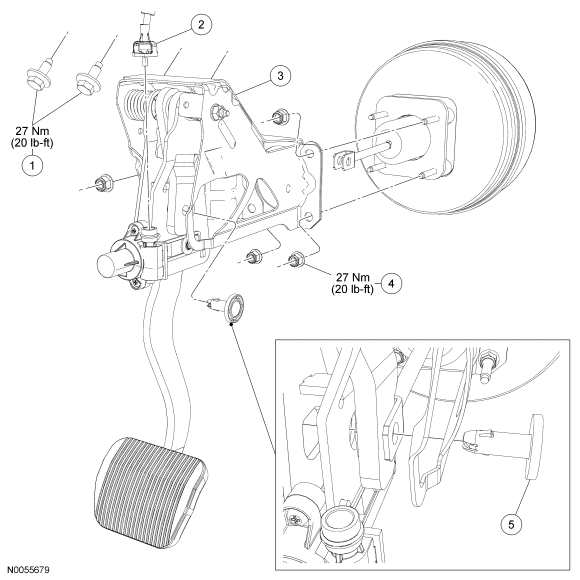

Fig 1: Exploded View Of Brake Pedal and Bracket With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W702368	Brake pedal bracket bolts (2 required)
2	-	Accelerator pedal-to-brake pedal cable (part of 9F836)
3	2450	Brake pedal and bracket
4	W520212	Brake pedal bracket nut (4 required)
5	2L523	Brake pedal pin
