Brake Master Cylinder: Notes

Material

Item	Specification
High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada)	WSS-M6C62-A

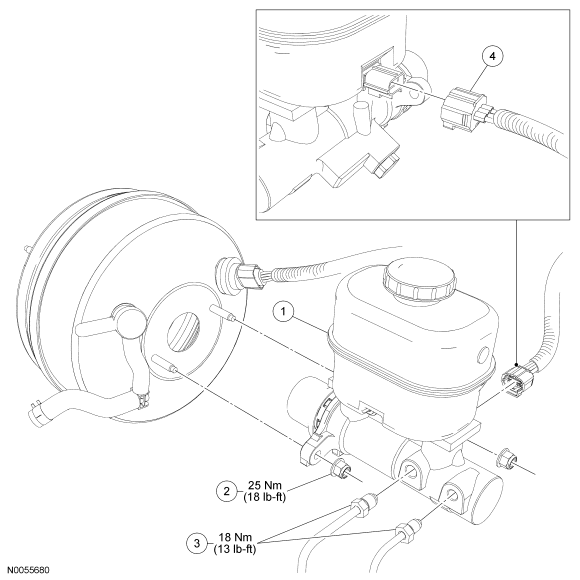

Fig 1: Exploded View Of Brake Master Cylinder With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	2C156	Brake master cylinder and reservoir assembly
2	W520212	Brake master cylinder nut (2 required)
3	-	Brake tube fittings (front part of 2B253, rear part of 2A040)
4	-	Brake fluid level switch electrical connector (part of 12A581)
