Brake Booster: Notes

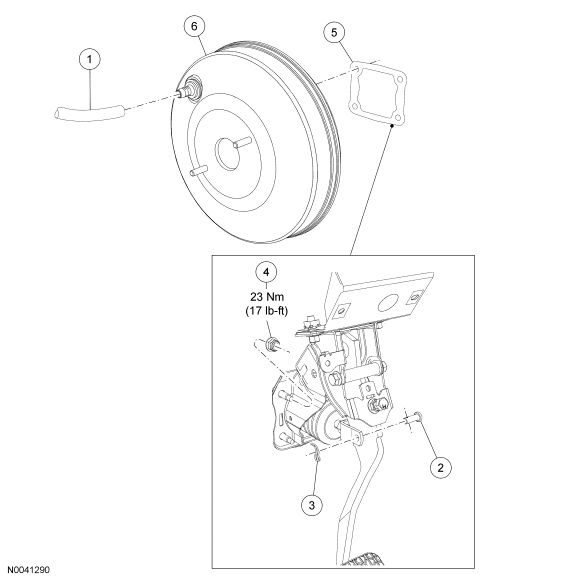

Fig 1: Exploded View Of Brake Booster With Torque Specification
GF0029607Courtesy of FORD MOTOR CO.
Item Part Number Description
1 9C840 Vacuum hose/aspirator assembly
2 2N513 Brake booster push rod pin
3 7B096 Brake booster push rod clip
4 W520212 Brake booster nut (4 required)
5 2B022 Brake booster-to-cowl gasket
6 2B195 Brake booster with check valve
