Home >> Lincoln >> 2006 >> LS >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Hydraulic Brake Actuation >> Removal And Installation >> Brake Pedal and Bracket >> Notes

Brake Pedal and Bracket: Notes

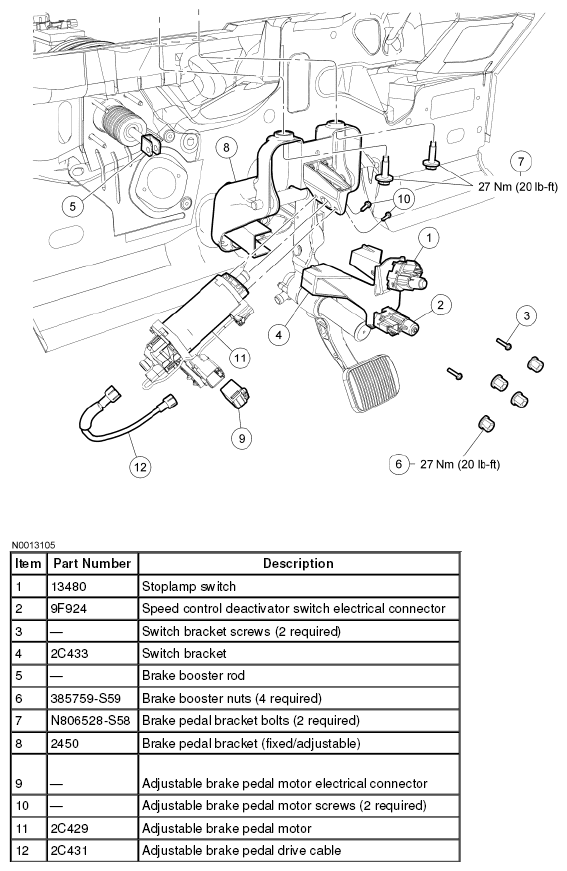

Fig 1: Brake Pedal And Bracket Replacement Components With Torque Specifications

G04690023

Courtesy of FORD MOTOR CO.
