Brake Master Cylinder: Notes

MATERIAL CHART

Item Specification
High Performance DOT 3 Motor Vehicle Brake Fluid PM-1 (Canada CPM-1) WSS-M6C62-A

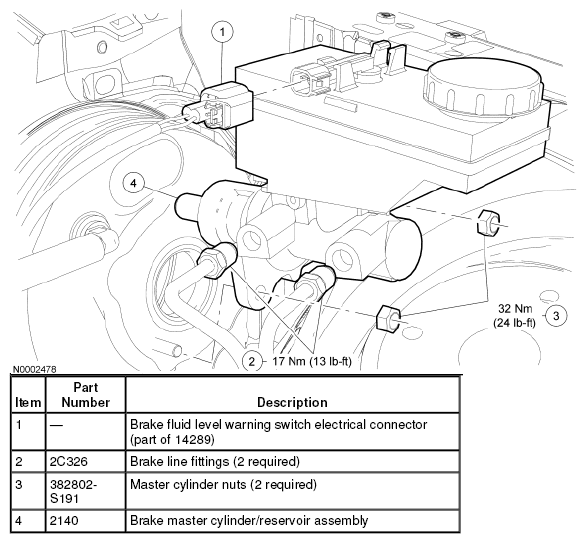

Fig 1: Brake Master Cylinder Replacement Components With Torque Specifications
G04690024Courtesy of FORD MOTOR CO.
