Instrument Panel Dimmer Switch

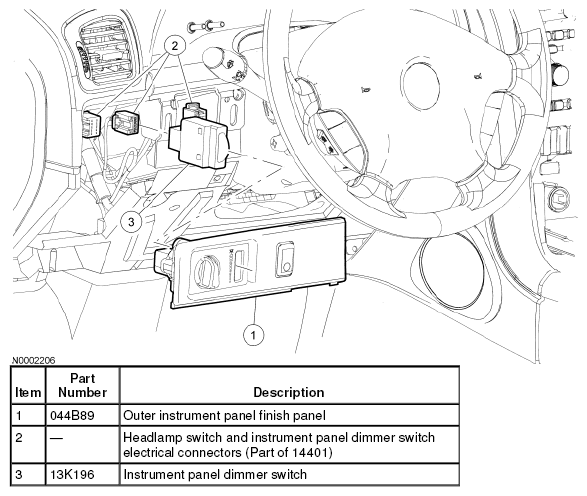

Fig 1: Identifying Instrument Panel Dimmer Switch Components
G04692214Courtesy of FORD MOTOR CO.
  1. Remove the instrument panel steering column cover. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
    2. NOTE: The outer instrument panel finish panel is held in place by spring clips located on the housing.
  2. Remove the outer instrument panel finish panel.
    • Disconnect electrical connectors.
  3. Release the retaining tabs and remove the instrument panel dimmer switch.
  4. To install, reverse the removal procedure.
