Removal and Installation

All Vehicles

1. Remove the instrument cluster. For additional information, REFER to INSTRUMENT CLUSTER .

Expedition

2. Release the retaining tabs and remove the instrument cluster lens.

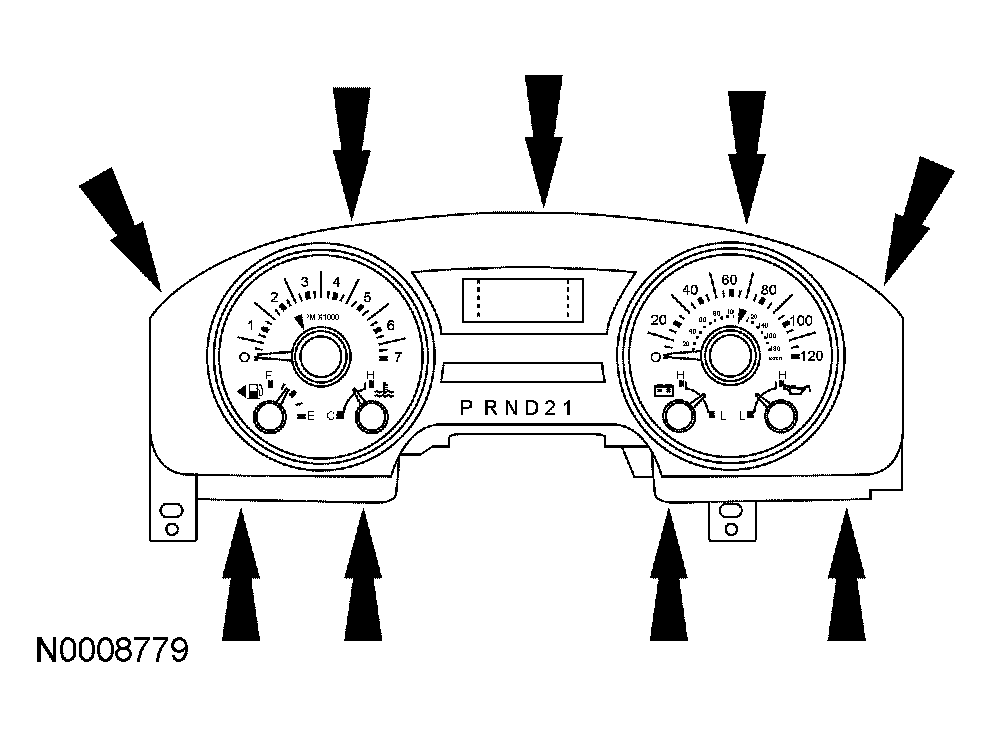

   Fig 1: Removing Instrument Cluster Lens

   Courtesy of FORD MOTOR CO.

Navigator

3. Remove the 4 instrument cluster lens screws.
   Fig 2: Removing 4 Instrument Cluster Lens Screws

   Courtesy of FORD MOTOR CO.
4. Release the retaining tabs and remove the instrument cluster lens.
   Fig 3: Removing Instrument Cluster Lens

   Courtesy of FORD MOTOR CO.

All vehicles

5. To install, reverse the removal procedure.
