Brake Pedal and Bracket: Notes

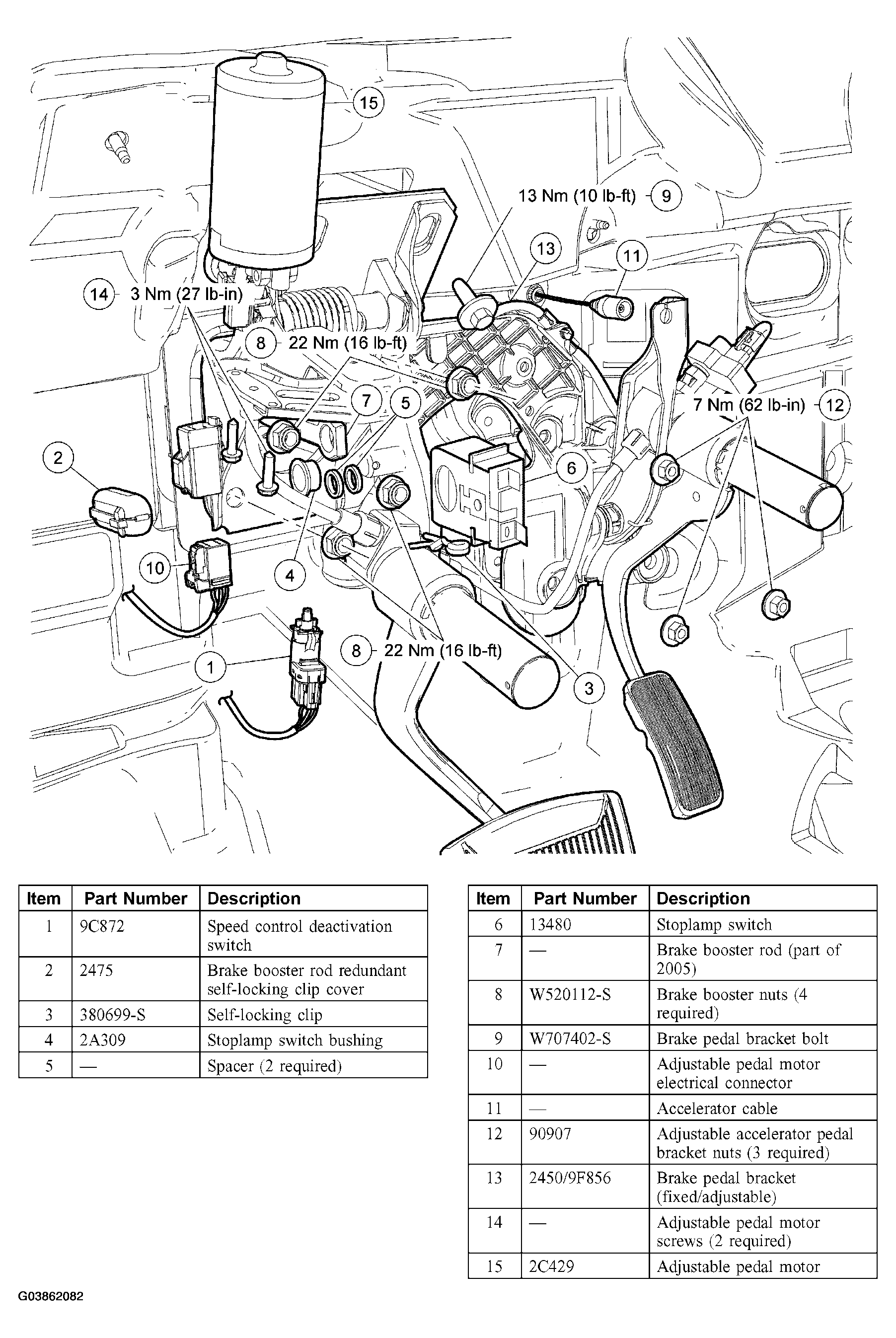

Fig 1: Brake Pedal And Bracket Component Locations (Torque Specs)

G03862082

Courtesy of FORD MOTOR CO.
