Brake Master Cylinder: Material

MATERIAL CHART

Item Specification
High Performance DOT 3 Motor Vehicle Brake Fluid PM-1 (Canada CPM-1) ESA-M6C25-A

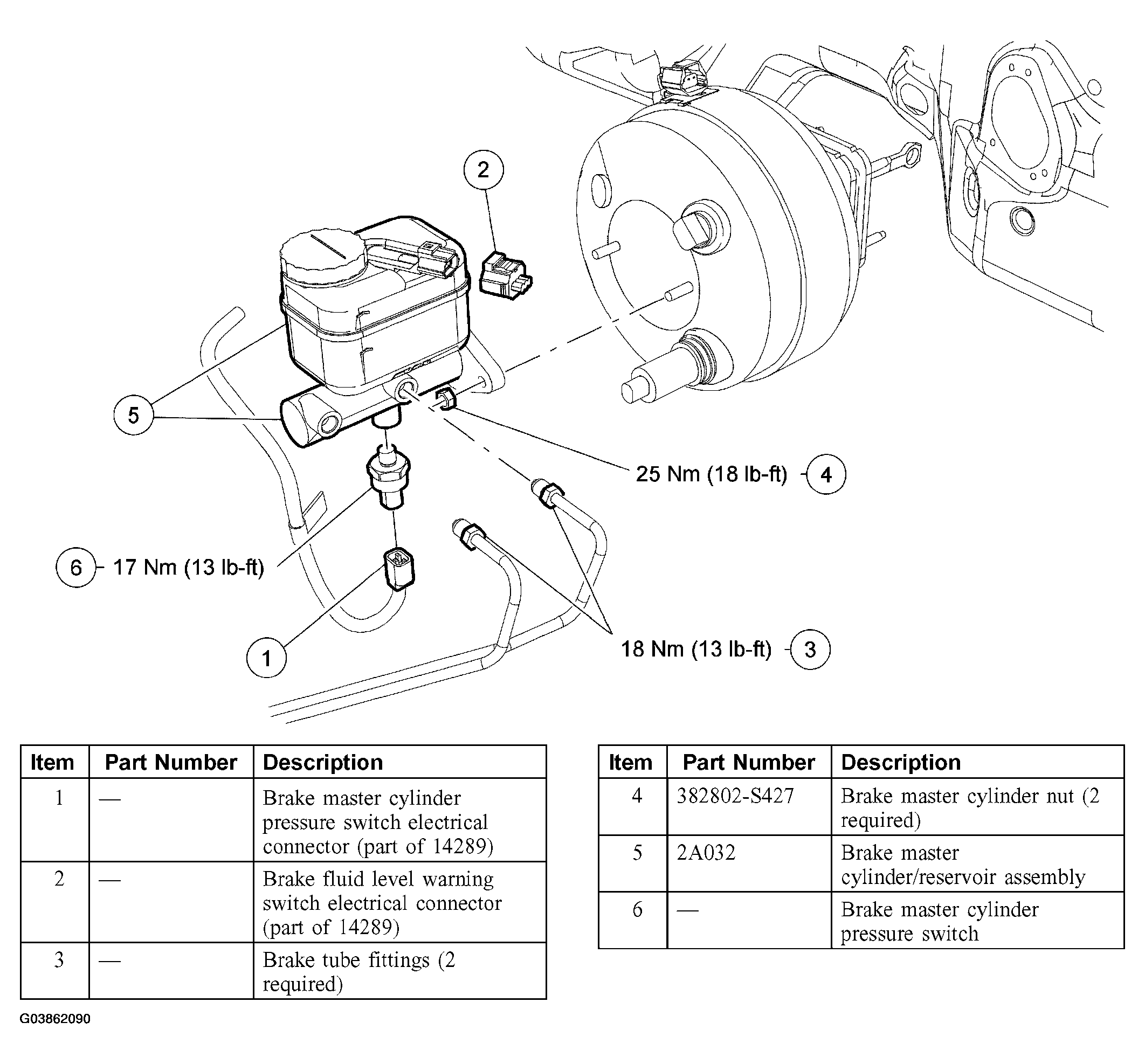

Fig 1: Brake Master Cylinder Replacement Components (Torque Specs)
G03862090Courtesy of FORD MOTOR CO.
