Brake Booster: Notes

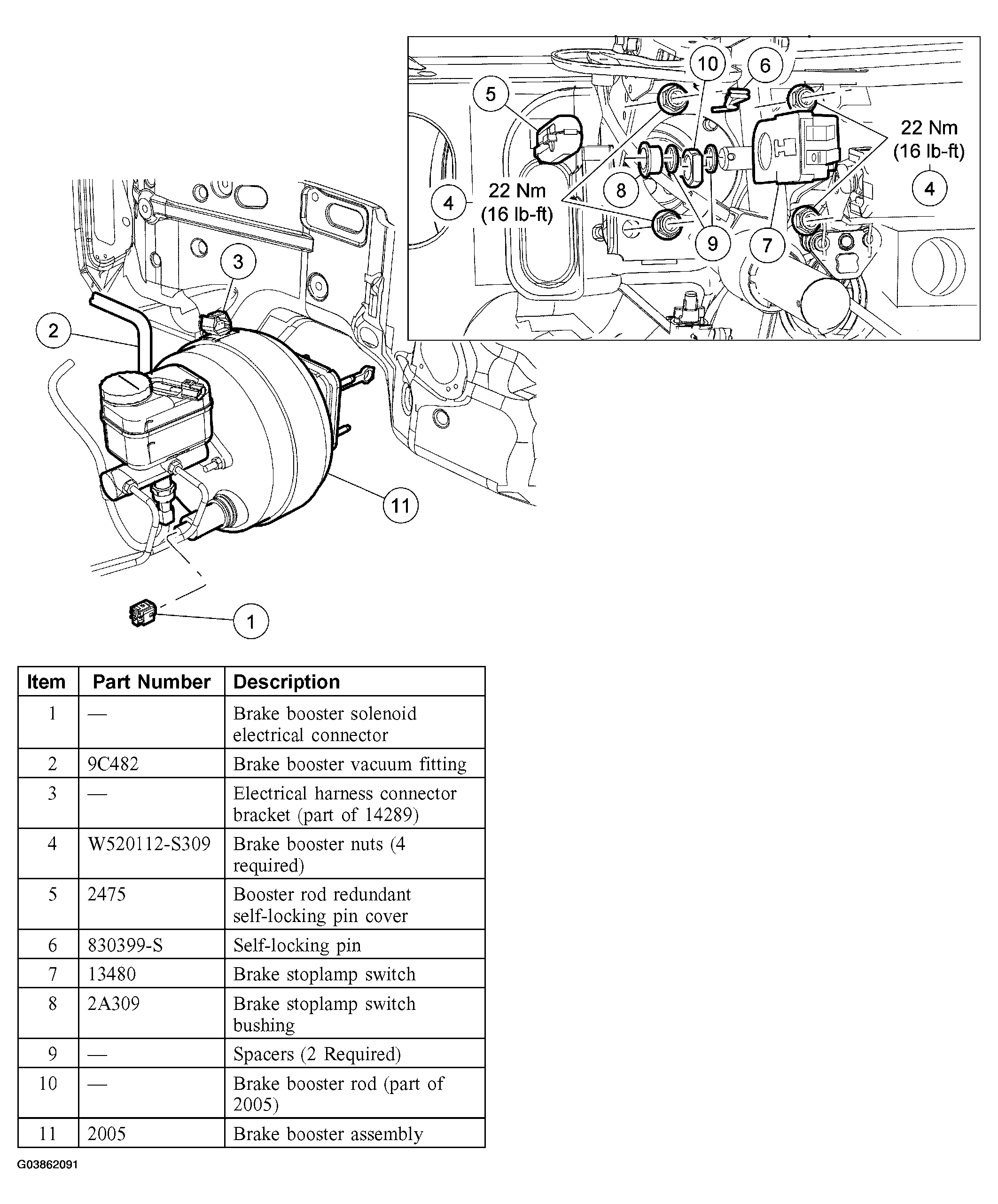

Fig 1: Brake Booster Replacement Components (Torque Specs)

G03862091

Courtesy of FORD MOTOR CO.
