Instrument Panel Dimmer Switch

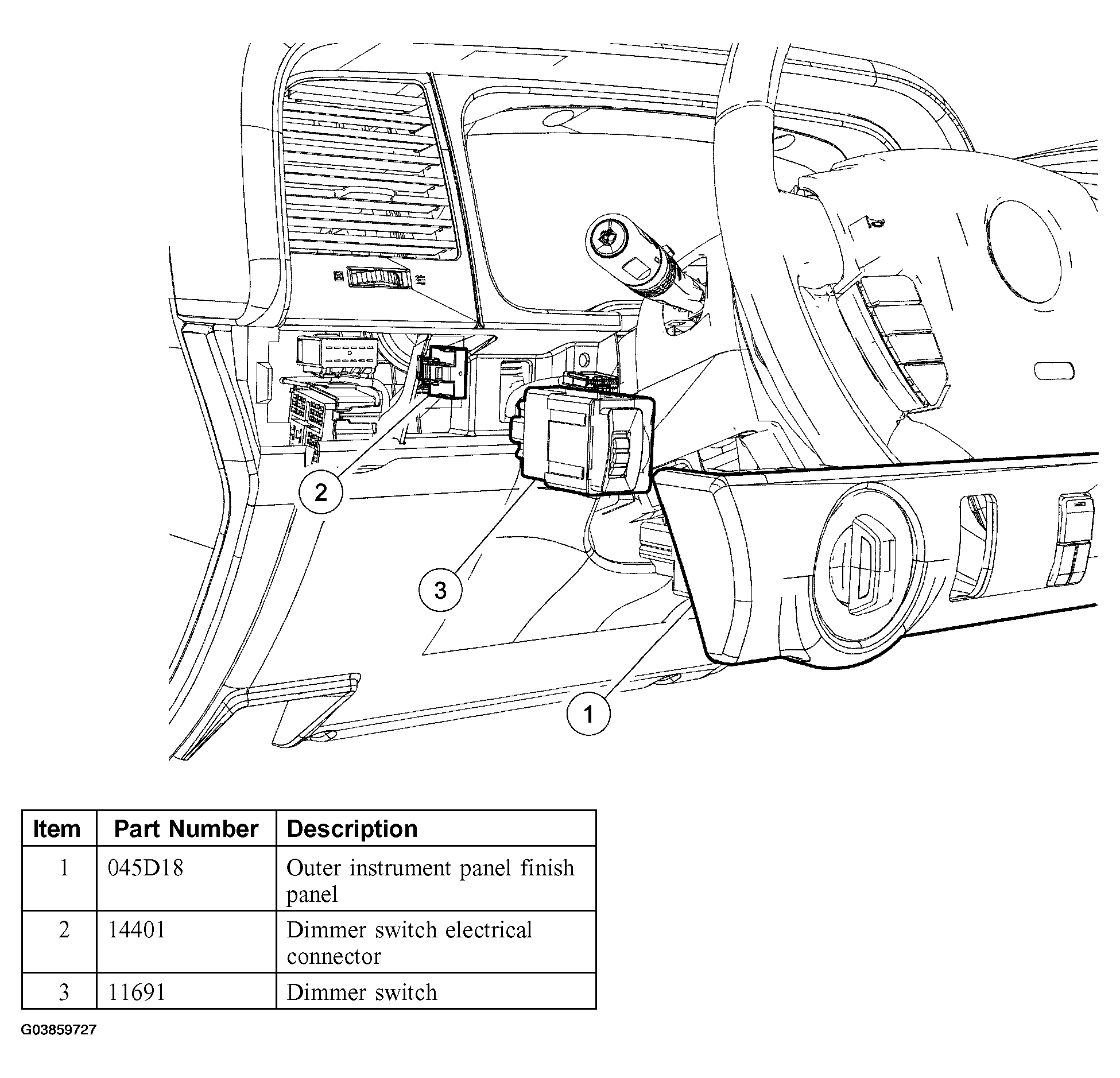

Fig 1: Removing Instrument Panel Dimmer Switch
G03859727Courtesy of FORD MOTOR CO.
    NOTE: The instrument panel finish panel is held in place by spring clips located on the panel.
  1. Remove the instrument panel finish panel.
    • Disconnect the electrical connector.
    2. NOTE: The dimmer switch is held in place by spring clips located on the housing.
  2. Remove the dimmer switch.
  3. To install, reverse the removal procedure.
