Dimmer Module

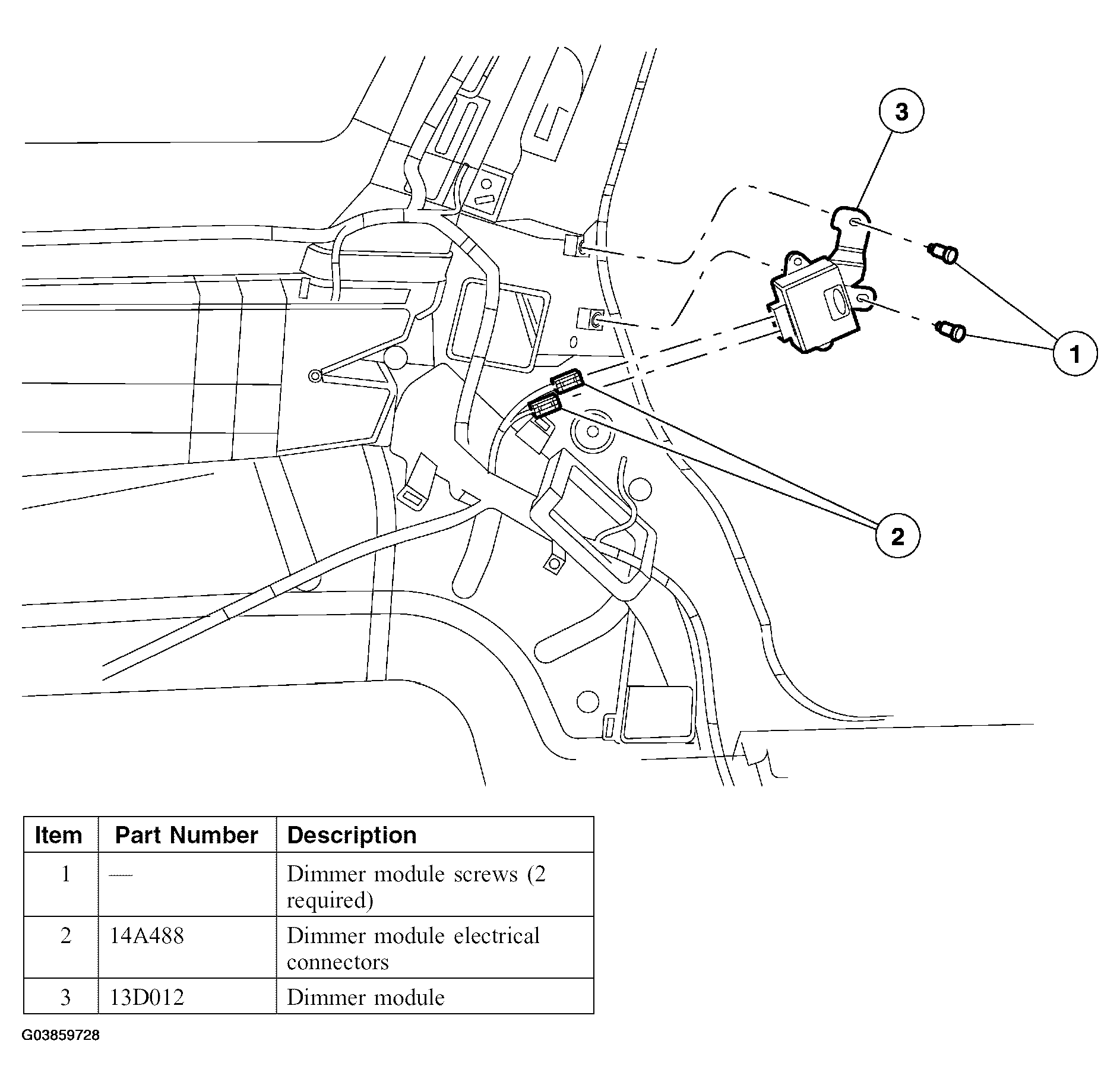

Fig 1: Removing Dimmer Module
G03859728Courtesy of FORD MOTOR CO.
  1. Remove the LH quarter trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  2. Remove the 2 screws and the dimmer module.
    • Disconnect the electrical connectors.
  3. To install, reverse the removal procedure.
