Instrument Cluster C220b

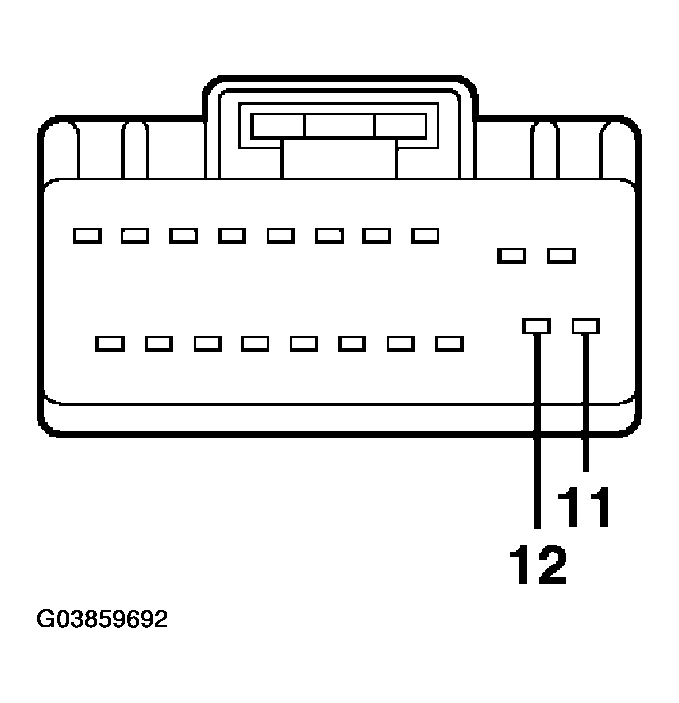

Fig 1: Identifying Instrument Cluster C220b Connector
G03859692Courtesy of FORD MOTOR CO.
INSTRUMENT CLUSTER C220B CONNECTOR REFERENCE CHART

Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
11 1205 (BK) ground 0 volts, less then 5 ohms to ground.
12 235 (RD/BK) dimmable backlighting power supply 0 volts with the headlamp switch in the OFF position. Greater than 10 volts with the dimmer switch in the full illumination position and the headlamp switch in PARK/ON positions.
