Clockspring C218a

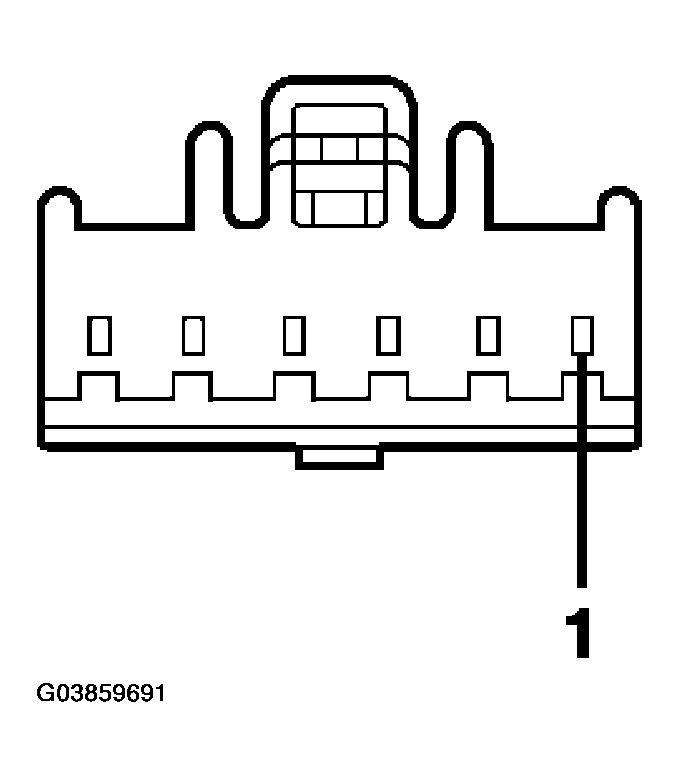

CLOCKSPRING C218A CONNECTOR REFERENCE CHART
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | 1011 (TN/OG) dimmable backlighting power supply | 0 volts with the headlamp switch in the OFF position. Greater than 10 volts with the dimmer switch in the full illumination position and the headlamp switch in the PARK/ON positions. |
