Removal and Installation

    ALL VEHICLES

  1. Remove the instrument cluster. For additional information, refer to INSTRUMENT CLUSTER  .

    EXPEDITION

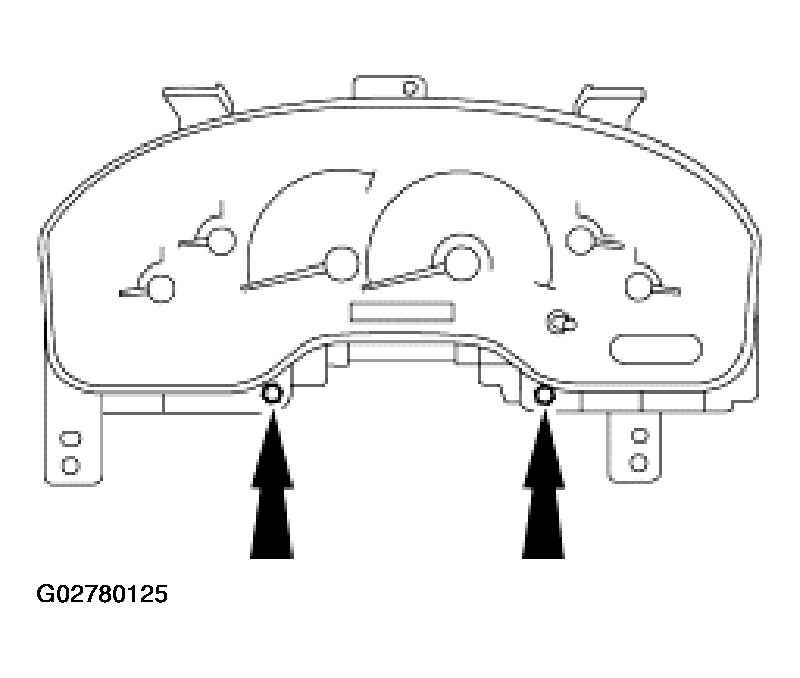

  2. Remove the screws.
    Fig 1: Removing Screws
    G02780125Courtesy of FORD MOTOR CO.

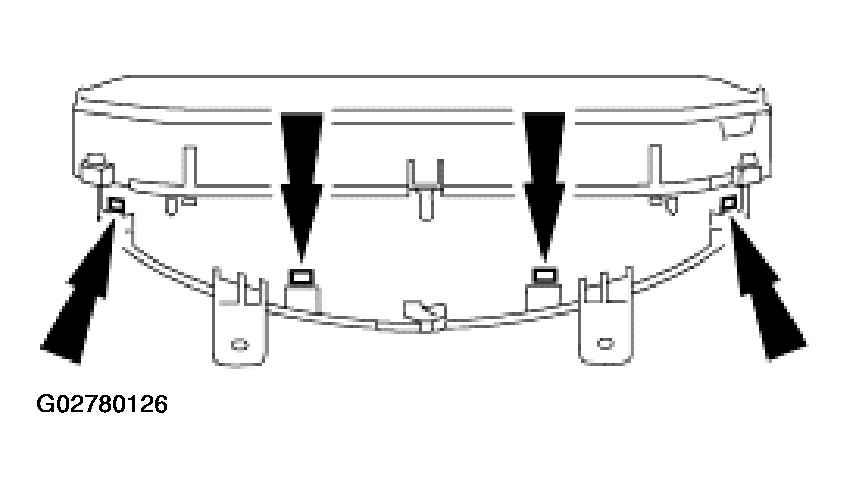

  3. Release the clips and remove the cluster lens.
    Fig 2: Removing Cluster Lens
    G02780126Courtesy of FORD MOTOR CO.

    4. NAVIGATOR

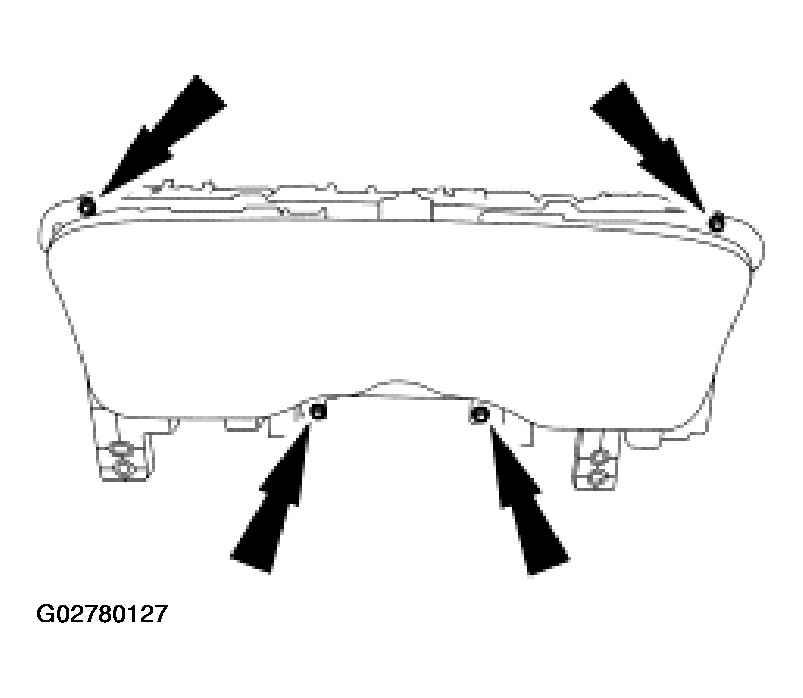

  4. Remove the screws.
    Fig 3: Removing Screws
    G02780127Courtesy of FORD MOTOR CO.

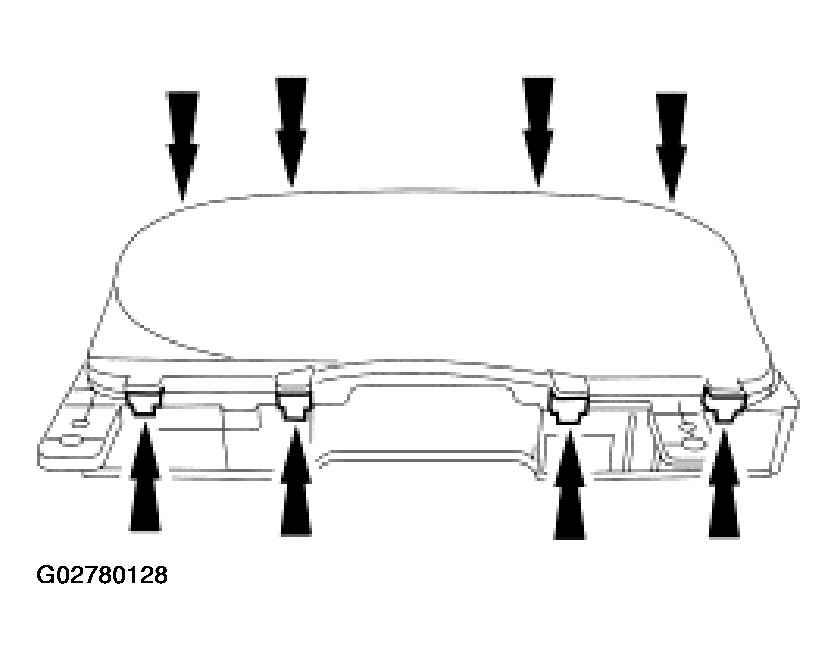

  5. Release the retaining tabs and remove the cluster lens.
    Fig 4: Removing Cluster Lens
    G02780128Courtesy of FORD MOTOR CO.

    6. ALL VEHICLES

  6. To install, reverse the removal procedure.
