Pinpoint Test Z: The Low Washer Fluid Indicator Is Never/Always On - Expedition

NOTE: Verify that the low washer fluid is full and that the key has been cycled at least once prior to carrying out the pinpoint test.

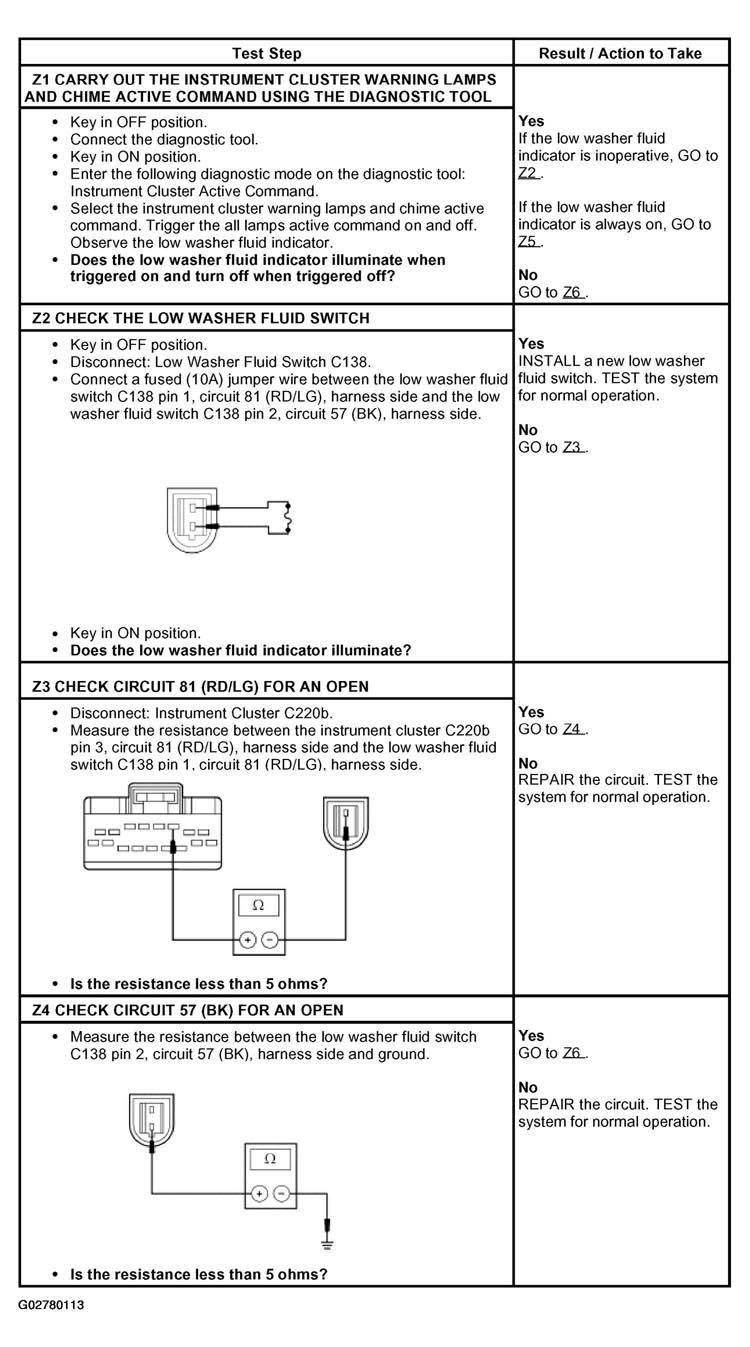

Fig 1: Pinpoint Test Z: Low Washer Fluid Indicator Is Never/Always On - Expedition (Steps Z1 To Z4)

Courtesy of FORD MOTOR CO.

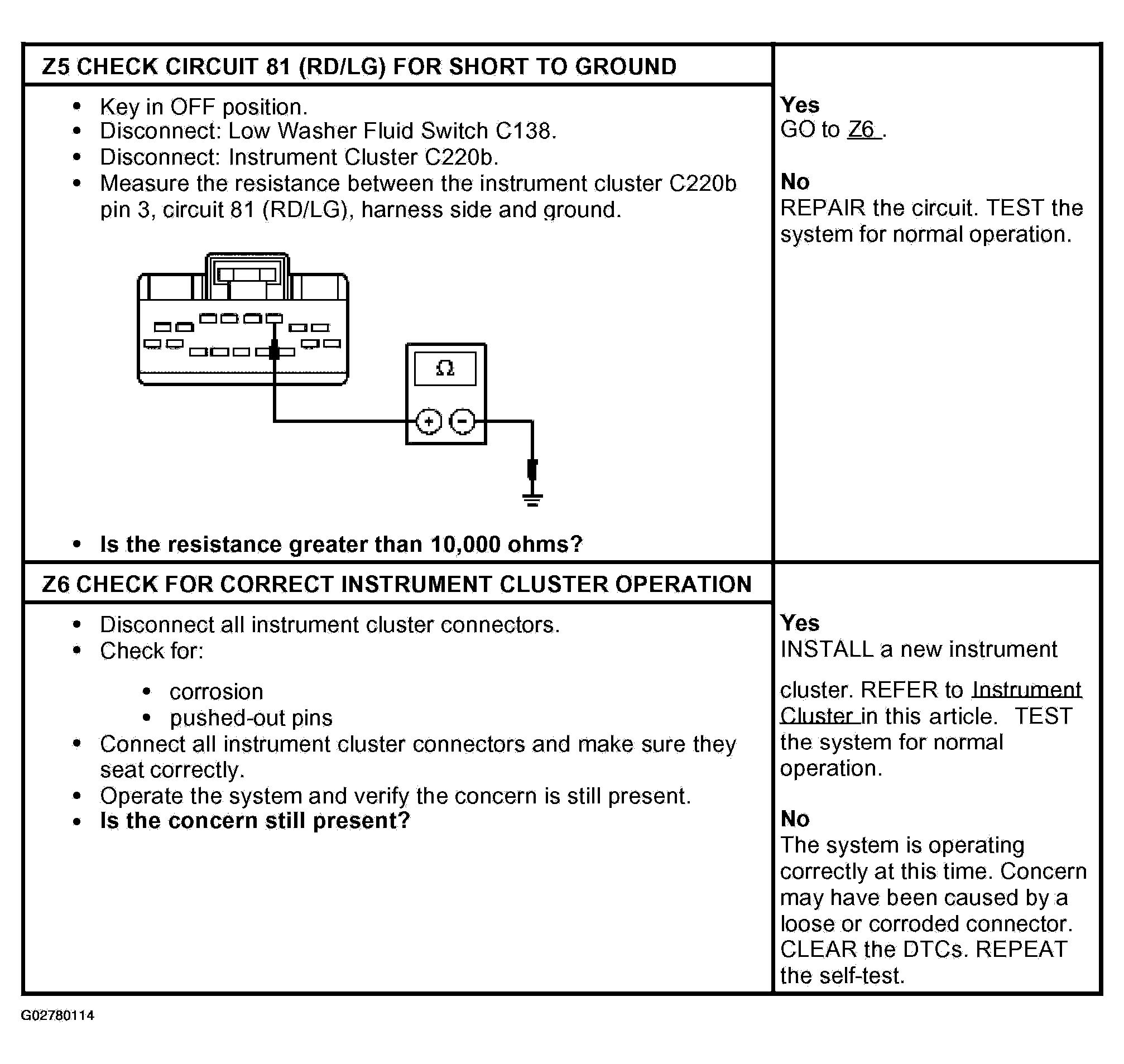

Fig 2: Pinpoint Test Z: Low Washer Fluid Indicator Is Never/Always On - Expedition (Steps Z5 To Z6)

Courtesy of FORD MOTOR CO.
