Pinpoint Test Q: The LH Turn Indicator Is Never On

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

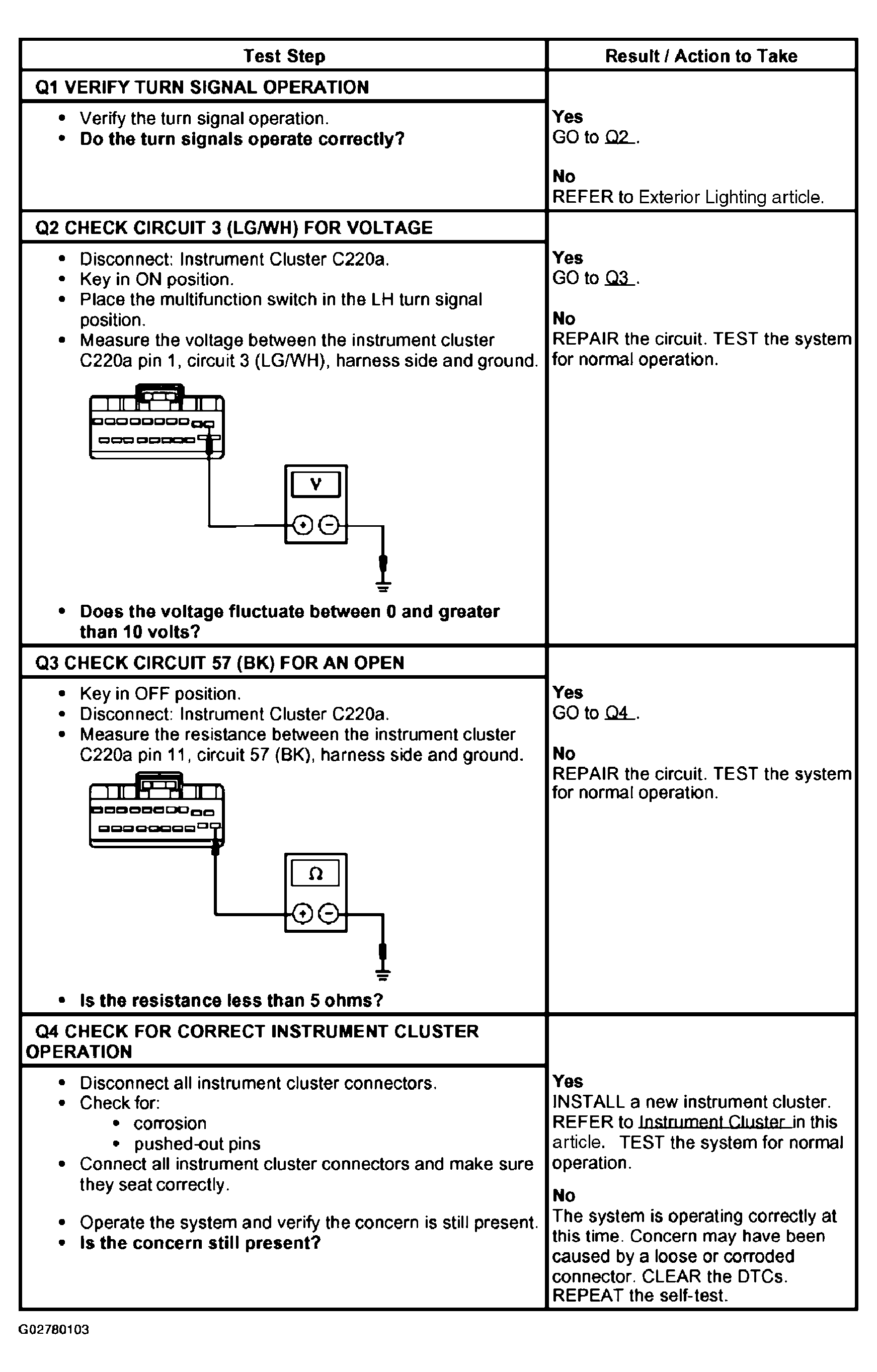

Fig 1: Pinpoint Test Q: LH Turn Indicator Is Never On
G02780103Courtesy of FORD MOTOR CO.
