Removal and Installation

    NOTE: For Expedition headlamp and dimmer switch removal, refer to EXTERIOR LIGHTING .

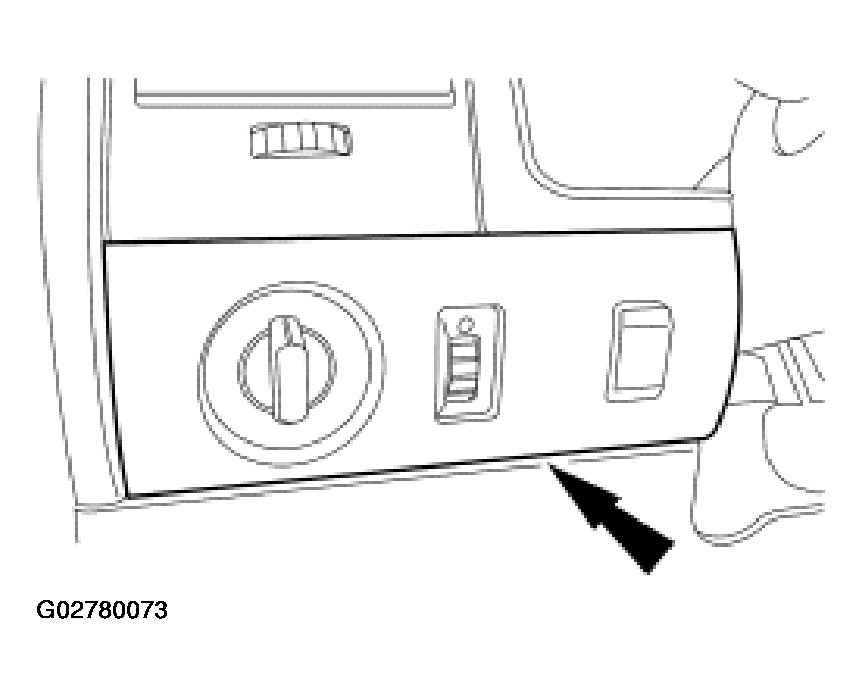

    Fig 1: Removing Instrument Panel Finish Panel
    G02780073Courtesy of FORD MOTOR CO.
  1. Remove the instrument panel finish panel.
    • Disconnect the electrical connectors.
  2. Depress the tabs and remove the instrument panel dimmer switch.

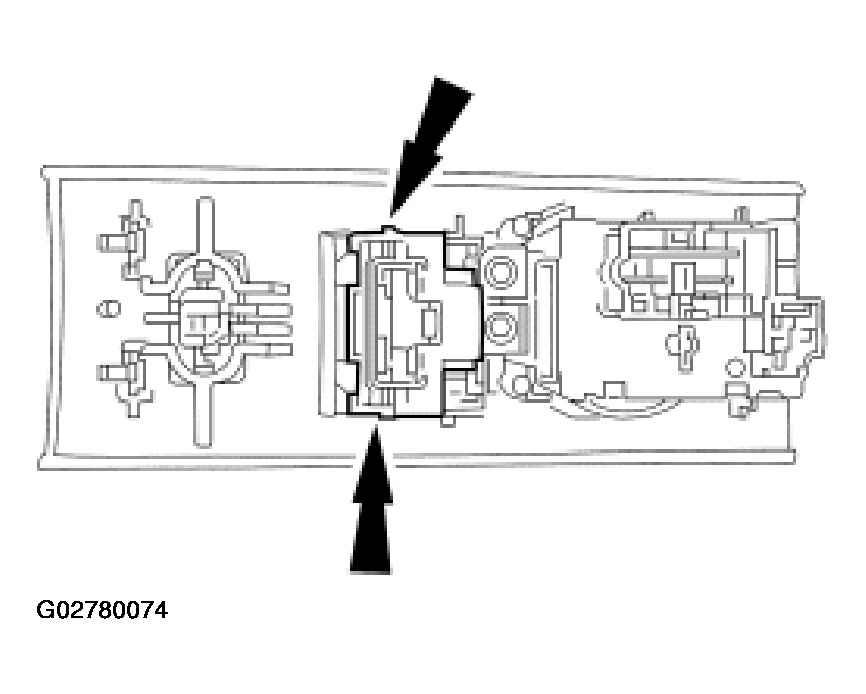

    Fig 2: Removing Instrument Panel Dimmer Switch
    G02780074Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
