Inspection and Verification
NOTE:
Upon installation of a new instrument cluster, the module must be reconfigured. For additional information, refer to MODULE CONFIGURATION
.
- Verify the customer concern by operating the instrument illumination.

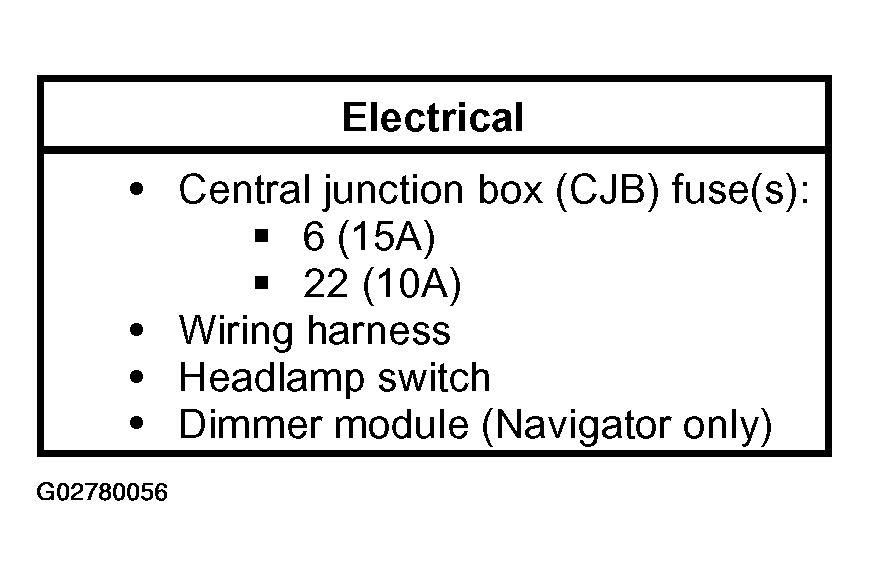

- Visually inspect for obvious signs of electrical damage; refer to the following chart.
- If the fault is not visually evident, determine the symptom and proceed to the Symptom Chart.
