Pinpoint Test N: The Charging System Warning Indicator Is Never On

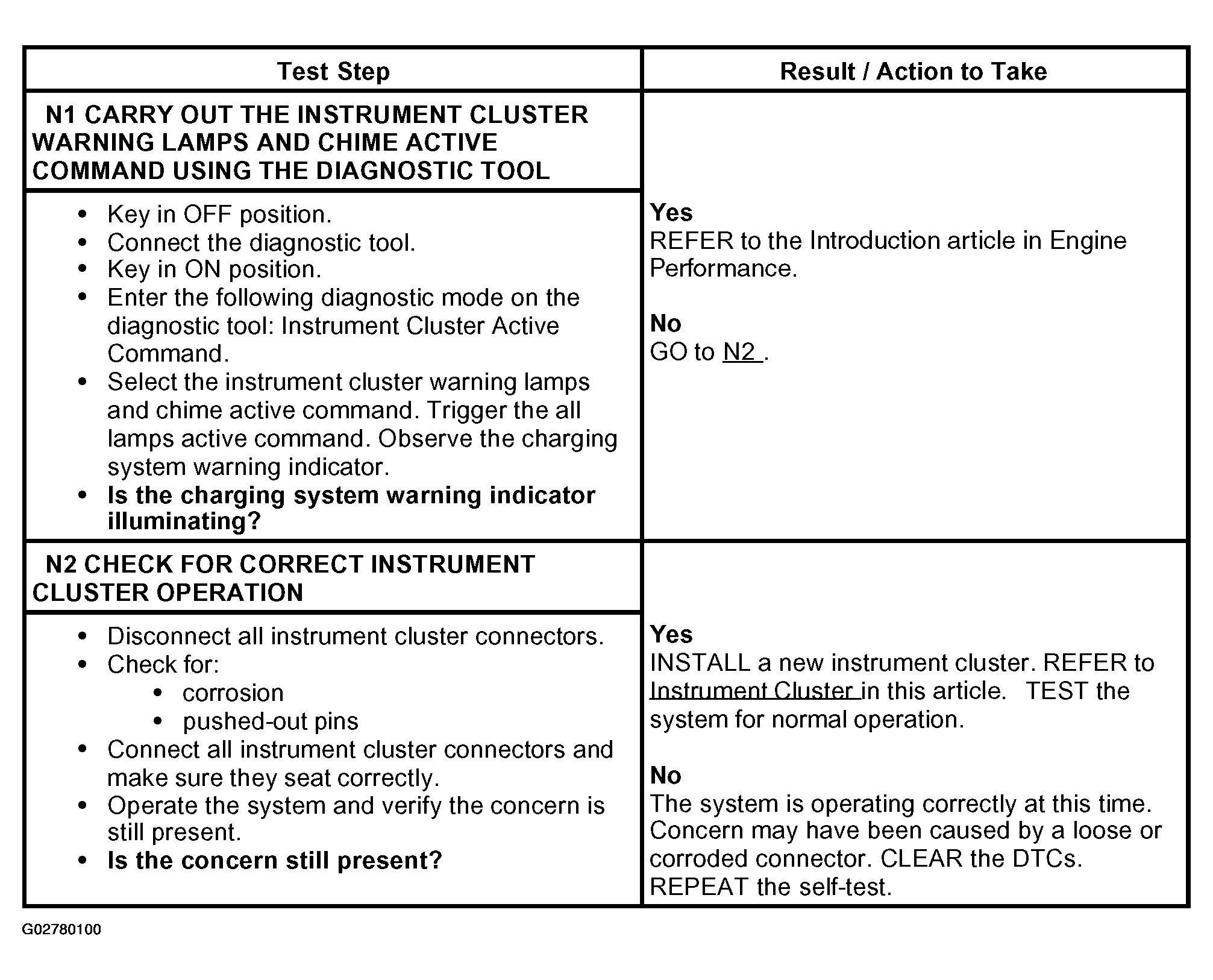

Fig 1: Pinpoint Test N: Charging System Warning Indicator Is Never On

G02780100

Courtesy of FORD MOTOR CO.
