Removal and Installation
WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

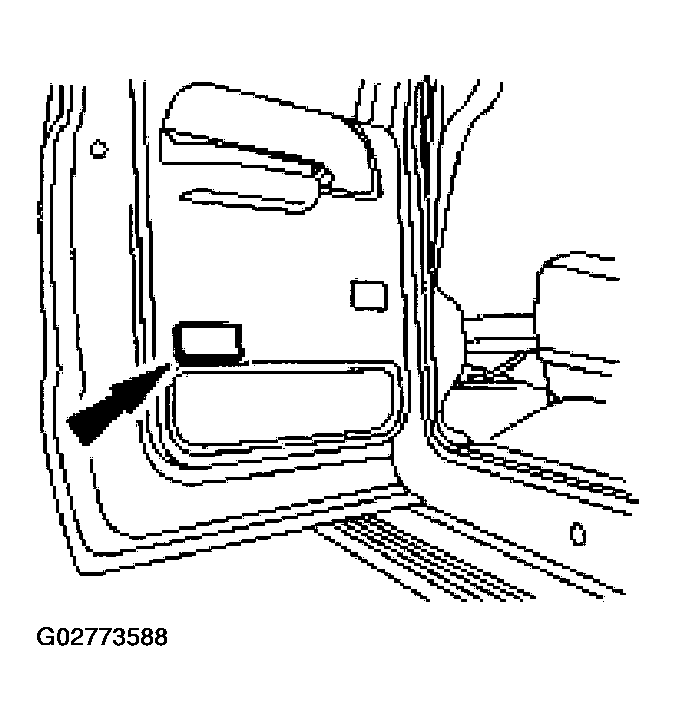

- Remove the window regulator switch housing (14527).
- If equipped with power windows, disconnect the electrical connector.
- If equipped, remove the window regulator handle (23342).
- Remove the panel reflector.

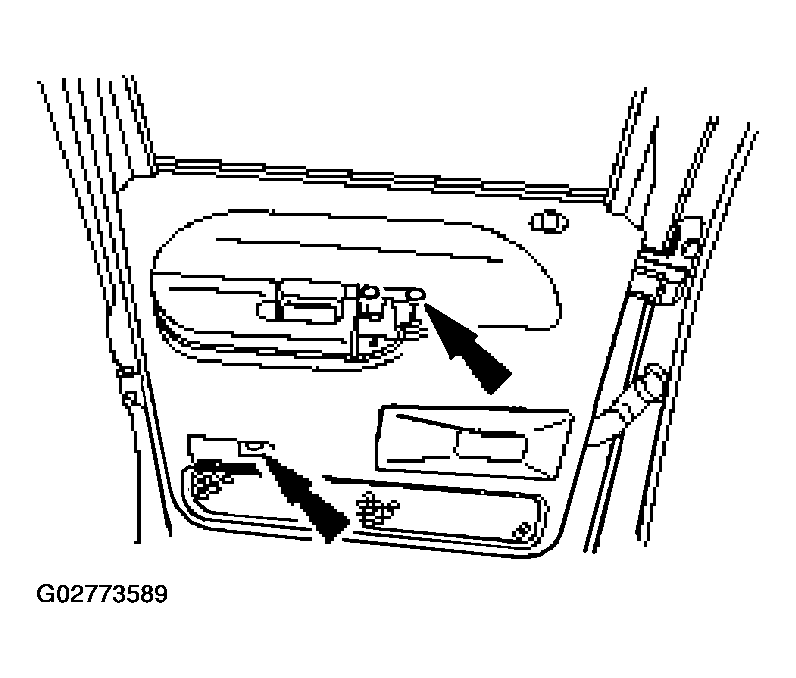

- Remove the screws.
- Lift and remove the rear door trim panel.
- To install, reverse the removal procedure.
CAUTION:
Do not pull directly outward on rear door trim panel, as damage will occur.
NOTE:
Remove the rear door trim panel by pulling it straight upward.
CAUTION:
Insert the lower panel tabs first or they can break when installing the rear door trim panel.
