Compass Zone Adjustment

    NOTE: The compass zone setting is pre-set from the factory to Zone 8.

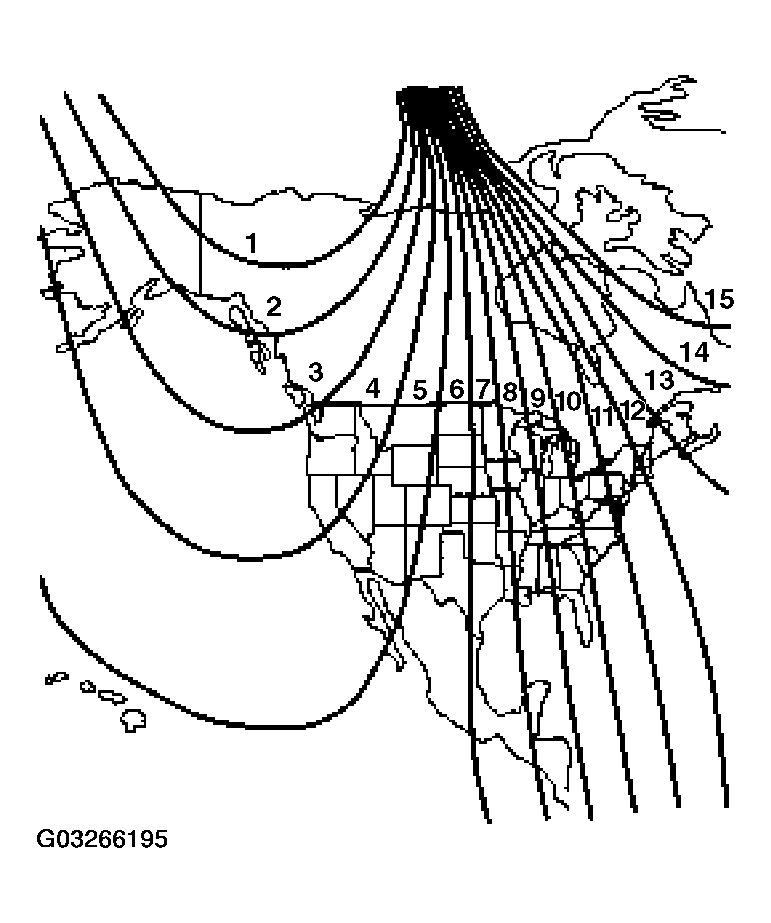

    Fig 1: Zone Variance Chart
    G03266195Courtesy of FORD MOTOR CO.
  1. Determine which magnetic zone you are in for your geographic location.
  2. Turn the ignition key to the ON position.
  3. Press the message center switch INFO button until the compass information is displayed in the message center.
  4. Press the RESET and SETUP buttons simultaneously until RESET FOR ZONE is displayed in the message center.
    5. NOTE: To exit the compass zone adjustment mode before carrying out a compass zone adjustment, press the INFO button.
  5. Press the RESET button until SETUP ZONE XX is displayed in the message center.
  6. Press the SETUP button repeatedly until the zone setting for your geographic location is displayed.
  7. Press the RESET button to exit the zone setting mode and lock in your individual zone.
