Removal and Installation

All Vehicles

1. Disconnect the brake pedal motor cable at the brake pedal and bracket assembly.

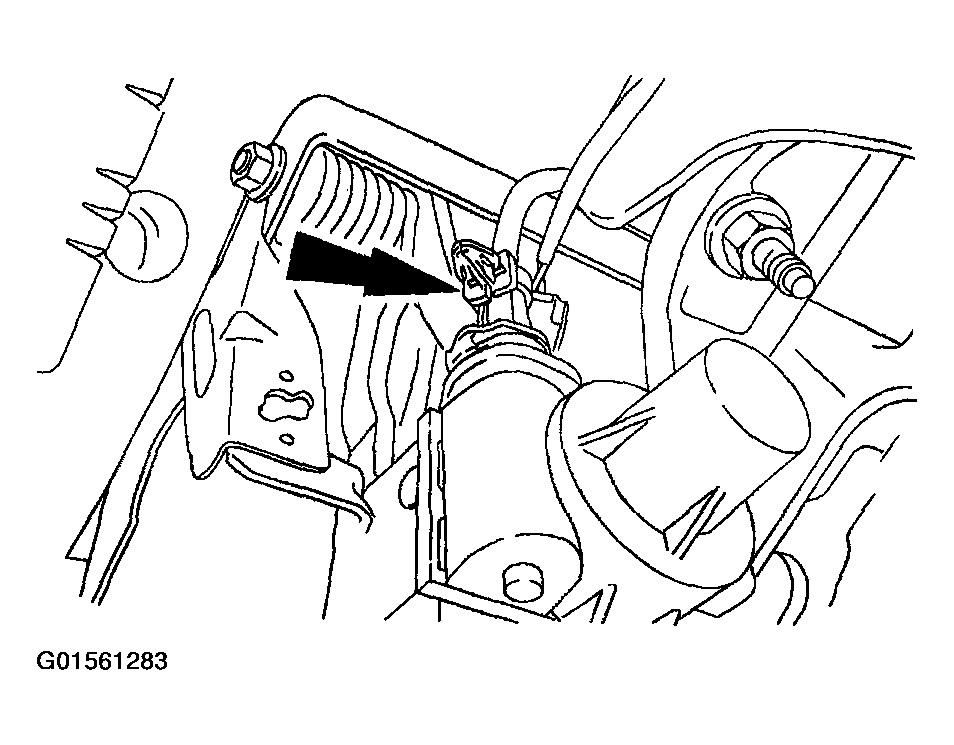

   Fig 1: Disconnecting Brake Pedal Motor Cable At Brake Pedal And Bracket Assembly

   Courtesy of FORD MOTOR CO.

   Vehicles With Memory

2. Unclip the protective cover from the memory potentiometer.

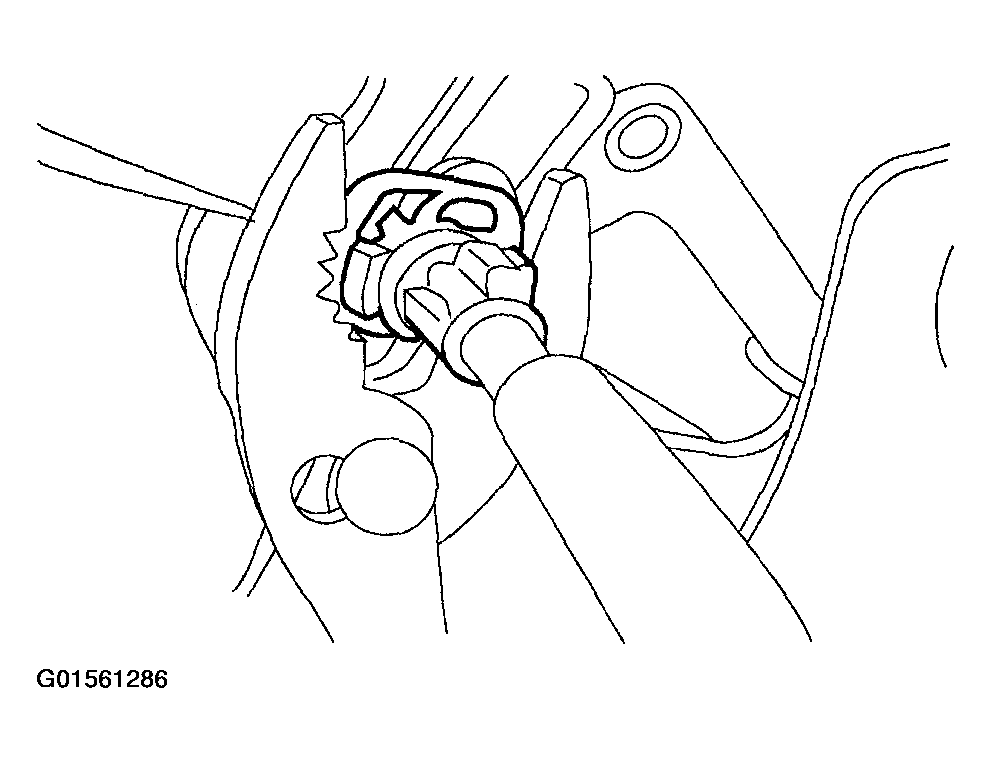

   Fig 2: Uncliping Protective Cover From Memory Potentiometer

   Courtesy of FORD MOTOR CO.
3. Remove the memory potentiometer and cable from the adjustable pedal motor.

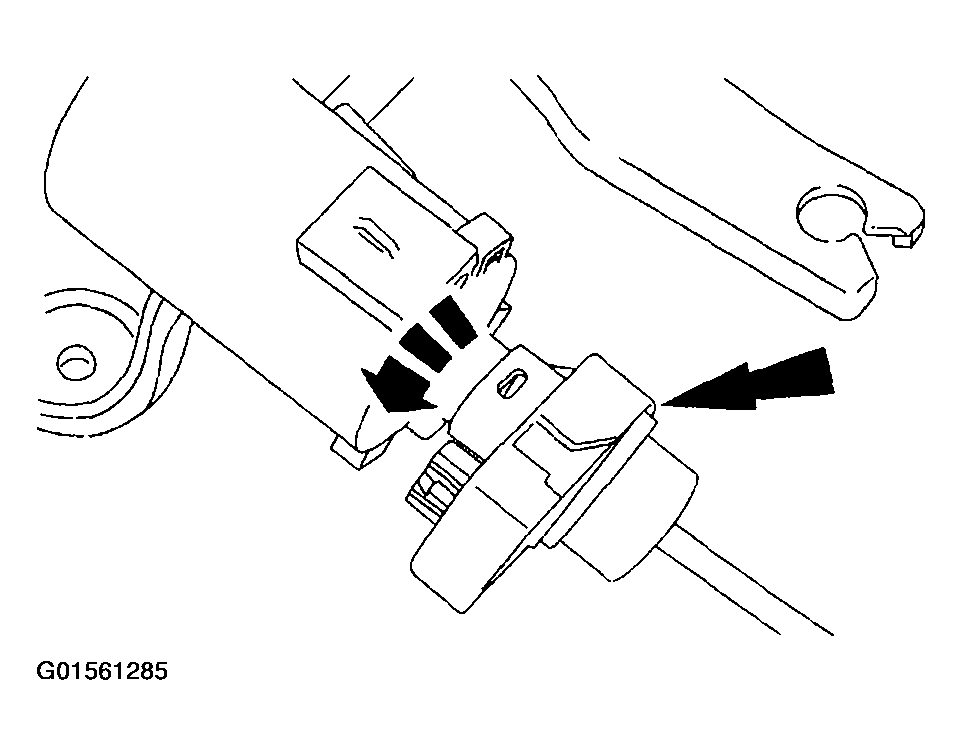

   Fig 3: Removing Memory Potentiometer And Cable From Adjustable Pedal Motor

   Courtesy of FORD MOTOR CO.

   Vehicles Without Memory

4. Disconnect the cable from the adjustable pedal motor.

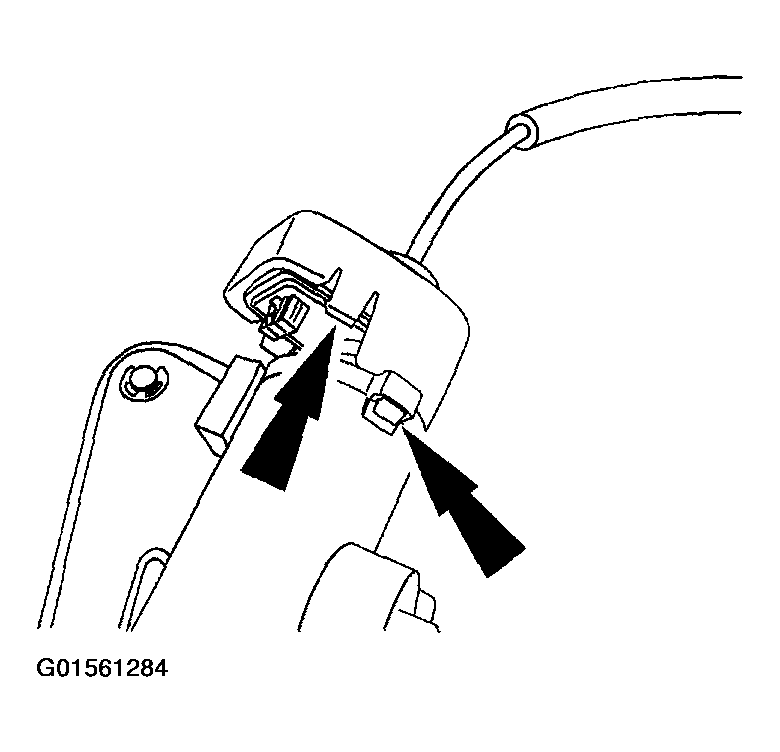

   Fig 4: Disconnecting Cable From Adjustable Pedal Motor

   Courtesy of FORD MOTOR CO.

   All Vehicles

5. To install, reverse the removal procedure.
