Removal and Installation

CAUTION: The brake pedal and the accelerator pedal must be in the same position when installing a new cable or a new pedal. The pedals must be in the all the way forward or all the way rearward position.

Disconnect the battery ground cable. For additional information, refer to GENERATORS & REGULATORS .

CAUTION: Do not install the cruise control deactivation switch after detaching it from the brake pedal bracket. Always install a new unit in its place.

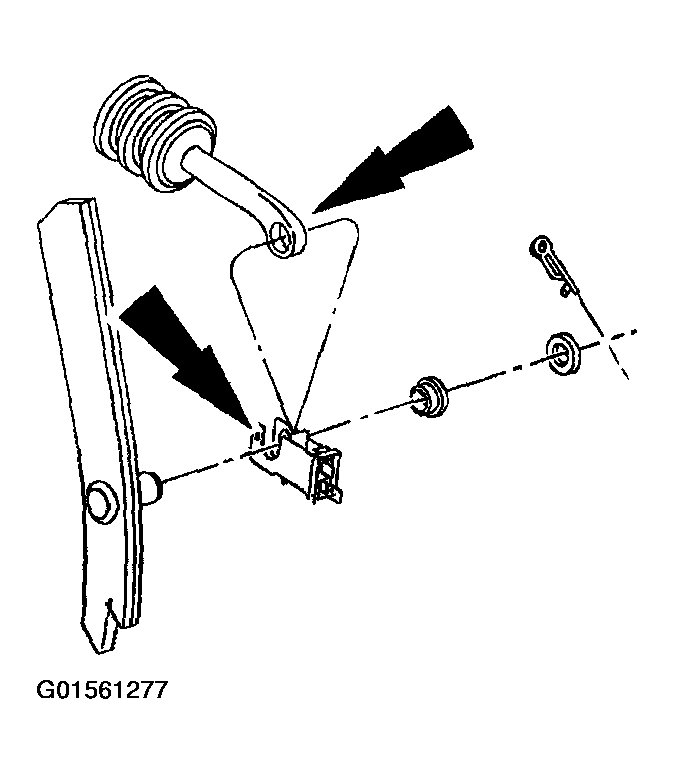

Fig 1: Removing Stoplight Switch Self-Lock Pin And Sliding Stoplight Switch

Courtesy of FORD MOTOR CO.

Remove the stoplight switch self-lock pin and slide the stoplight switch, booster push rod and the bushing off the brake pedal pin.

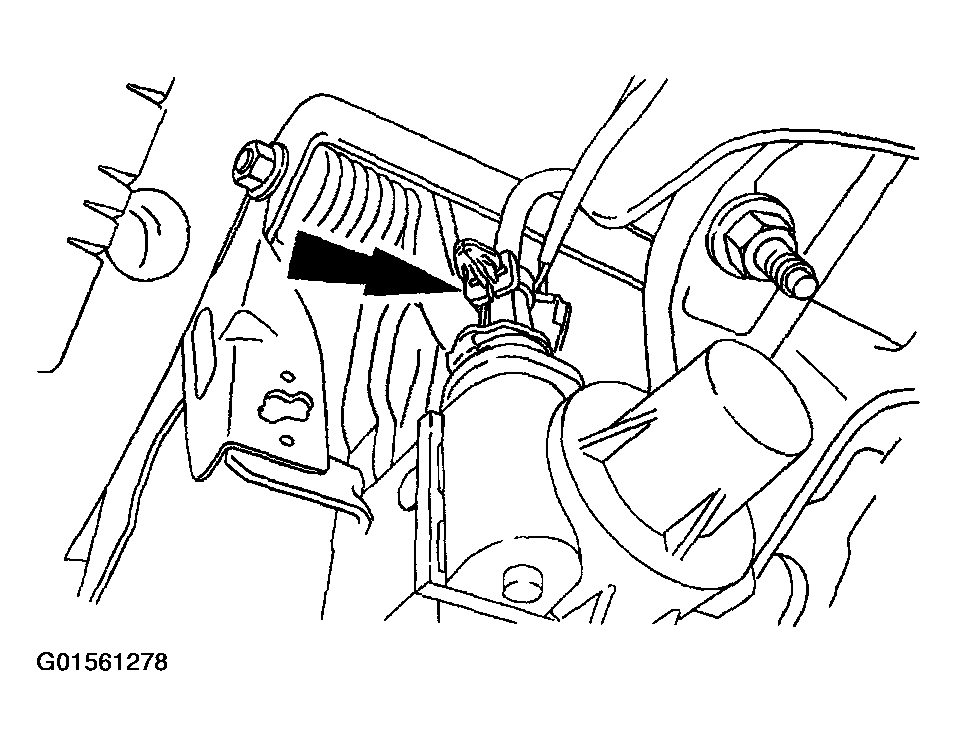

Remove the accelerator pedal-to-brake pedal cable.

Fig 2: Removing Accelerator Pedal-To-Brake Pedal Cable
Courtesy of FORD MOTOR CO.

CAUTION: The booster pushrod must be installed with pushrod offset, if present, pointing downward.

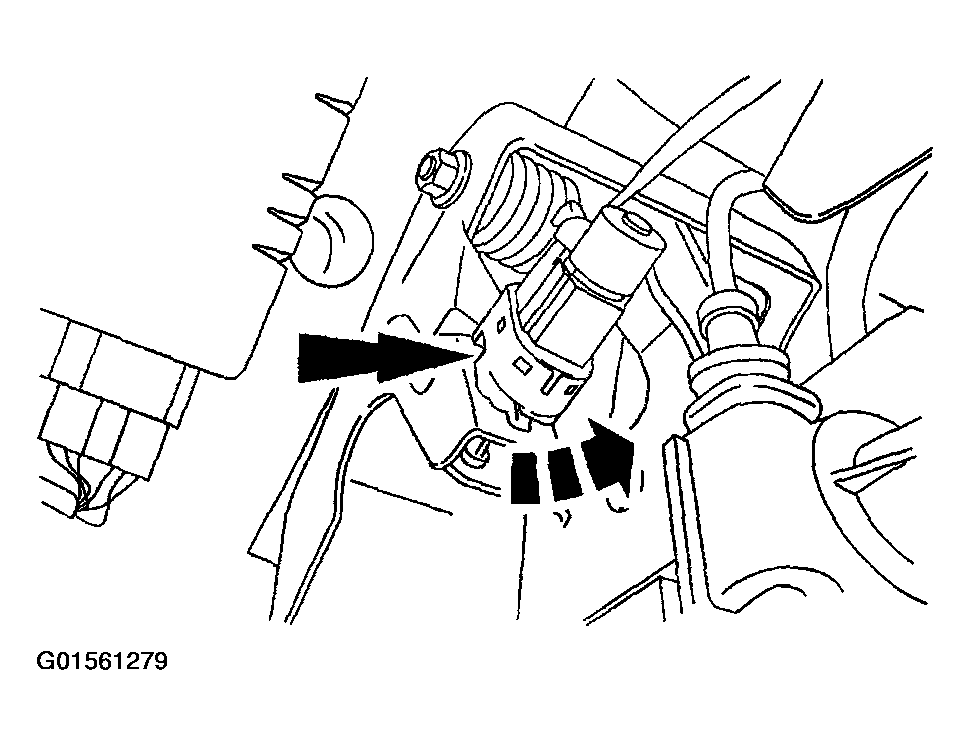

Fig 3: Turning Cruise Control Deactivation Switch Counterclockwise

Courtesy of FORD MOTOR CO.

Turn the cruise control deactivation switch counterclockwise and detach it from the brake pedal bracket.

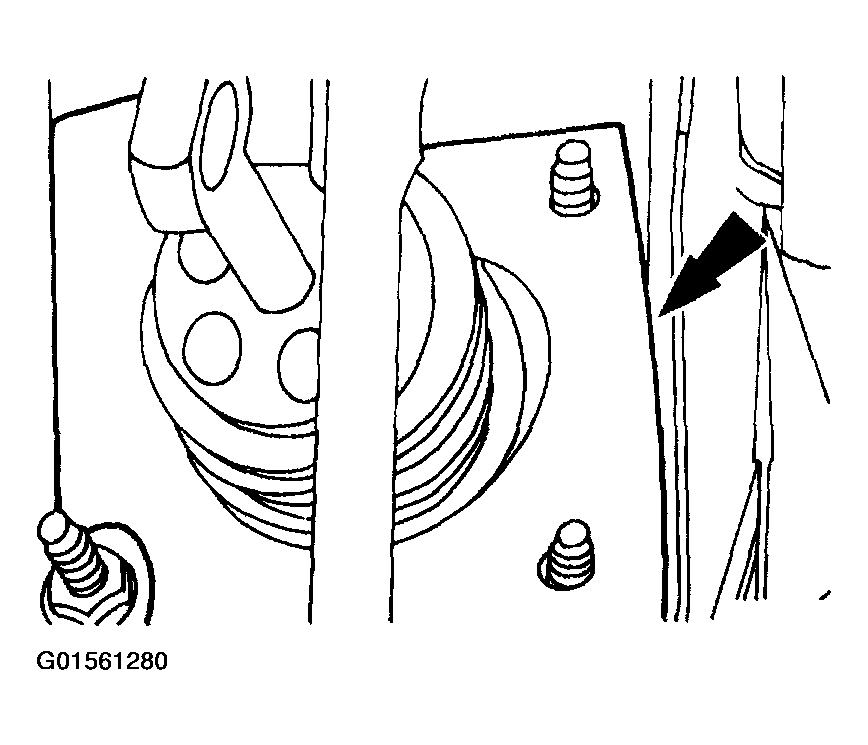

Remove the bulkhead sound insulator.

Fig 4: Removing Bulkhead Sound Insulator
Courtesy of FORD MOTOR CO.

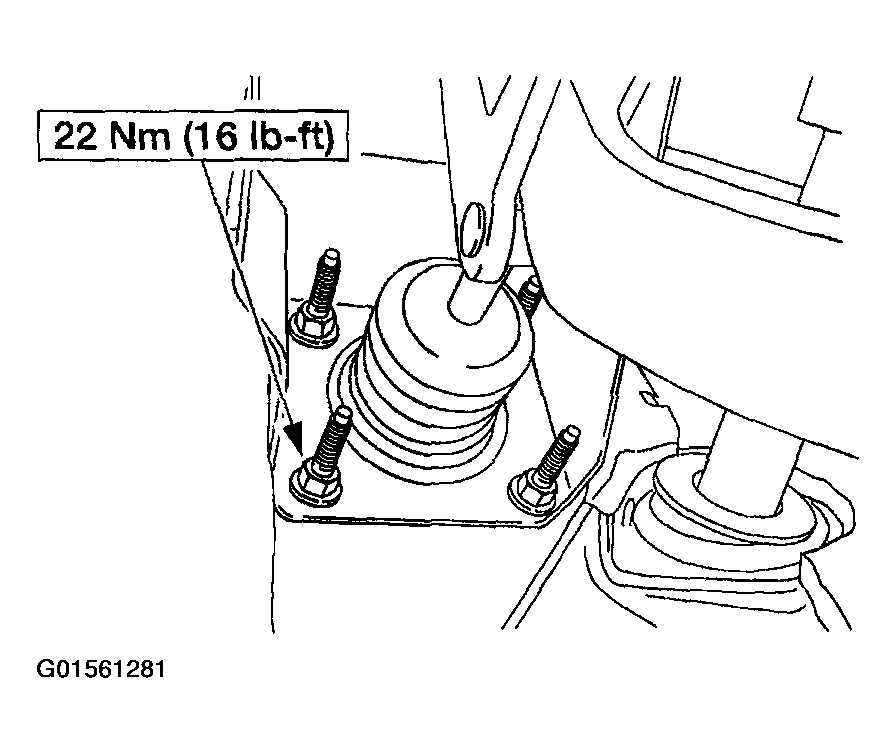

Remove the four brake pedal bracket nuts.

Fig 5: Removing Brake Pedal Bracket Nuts
Courtesy of FORD MOTOR CO.

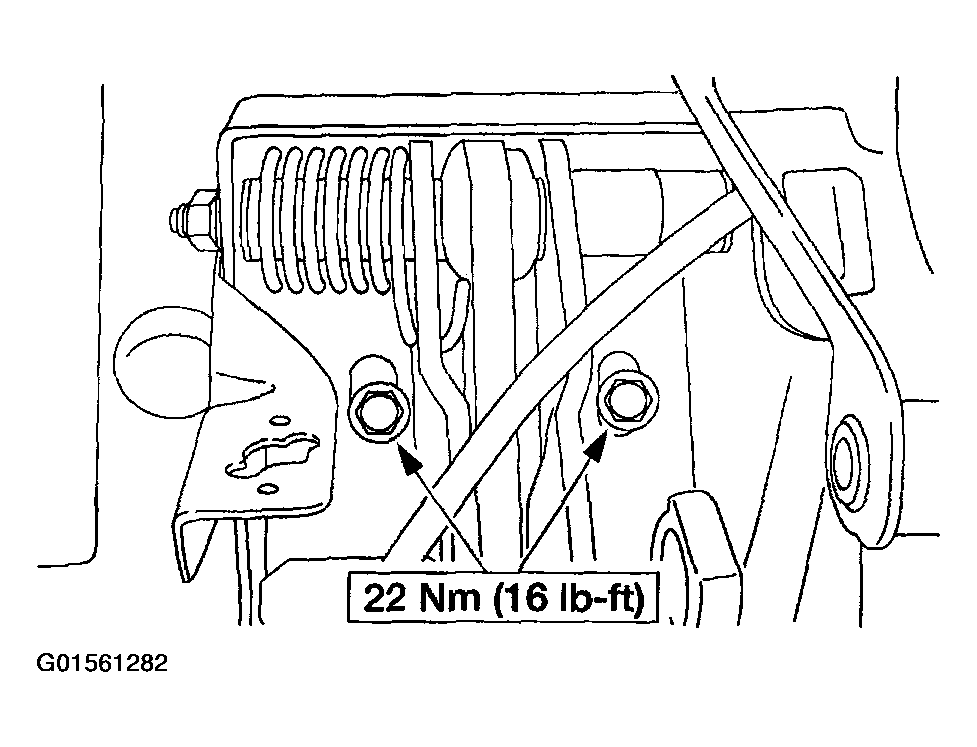

Remove the brake pedal bracket bolts, and remove the brake pedal and bracket.

Fig 6: Removing Brake Pedal Bracket Bolts And Brake Pedal And Bracket
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
