Removal and Installation

All Vehicles

1. Disconnect the battery negative cable. For additional information, refer to GENERATORS & REGULATORS .

   Vehicles With Cruise Control

2. Disconnect the brake pressure switch.

   All Vehicles

3. Disconnect the brake fluid level switch.

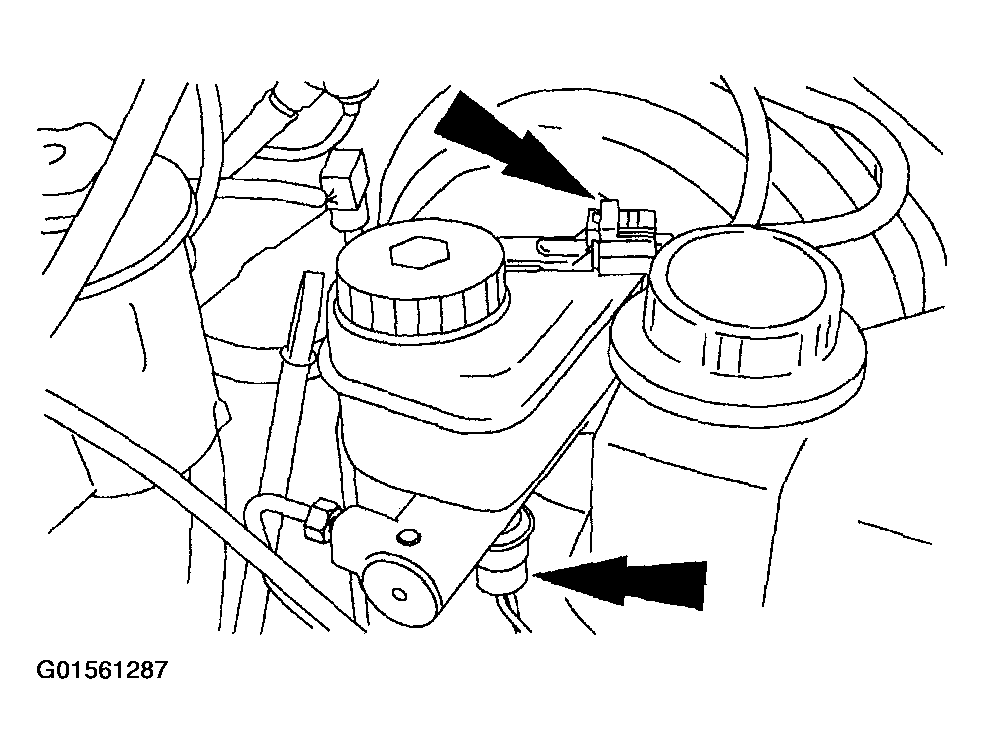

   Fig 1: Disconnecting Brake Fluid Level Switch

   Courtesy of FORD MOTOR CO.
4. Disconnect the brake lines and plug the master cylinder ports.

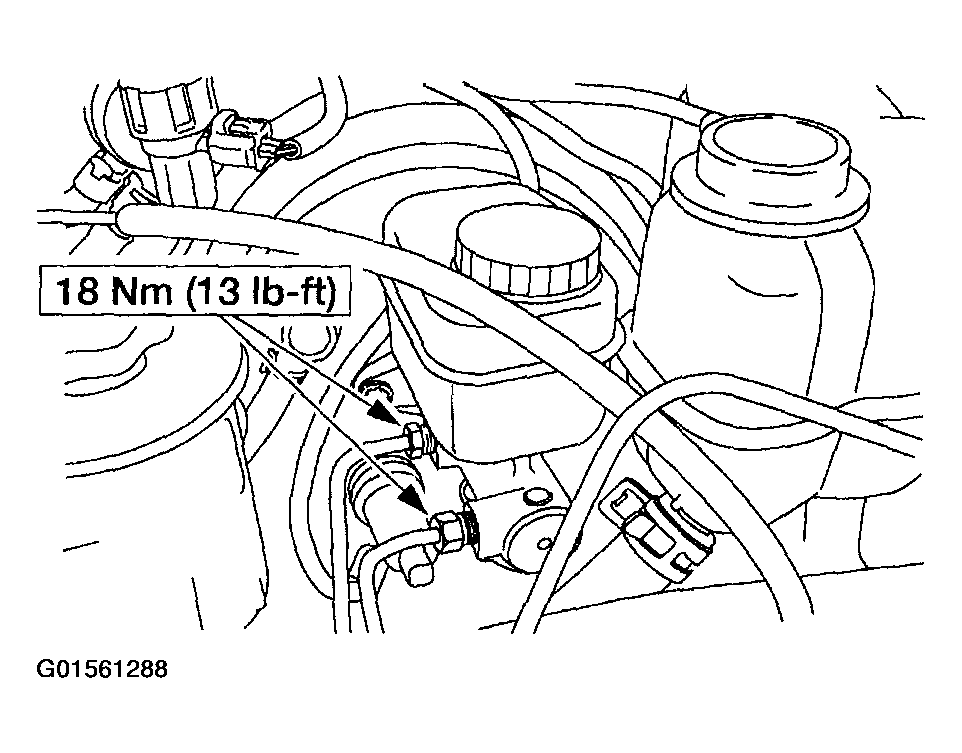

   Fig 2: Disconnecting Brake Lines And Plug Master Cylinder Ports

   Courtesy of FORD MOTOR CO.
5. Remove the to nuts and the brake master cylinder.

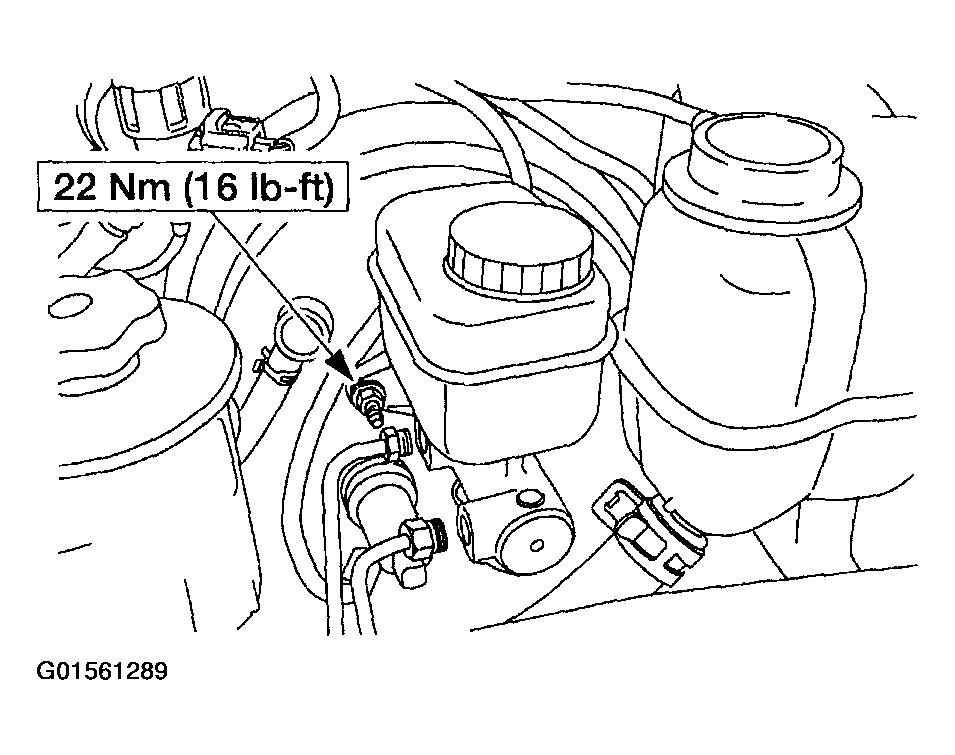

   Fig 3: Removing Brake Master Cylinder

   Courtesy of FORD MOTOR CO.
6. To install, reverse the removal procedure.
   • Bleed the brake system. For additional information, refer to BRAKE SYSTEM-GENERAL INFORMATION .
