Pinpoint Test V: Hi Temp/Low Oil Warning Indicator Is Never/Always On-Expedition

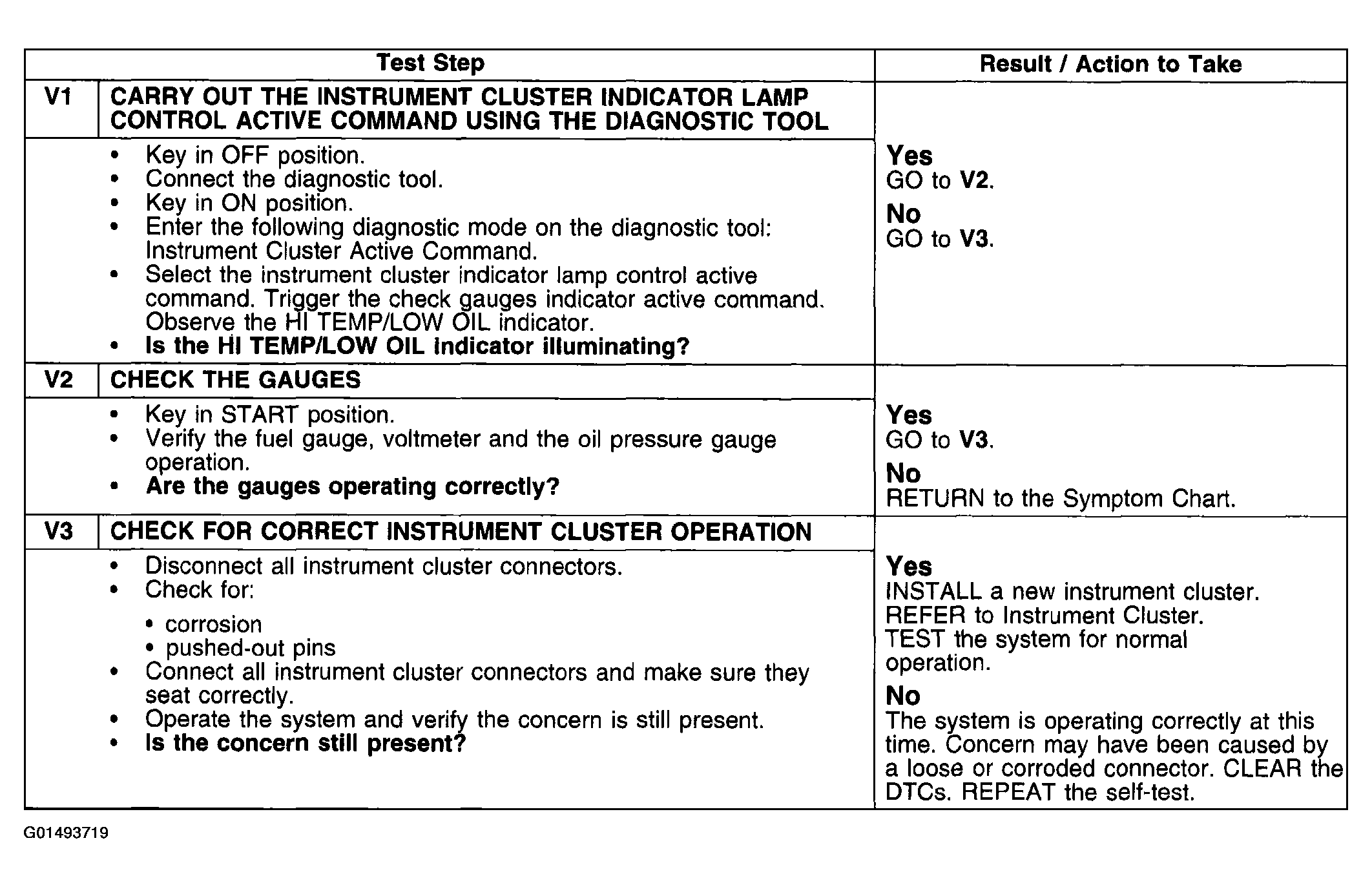

Fig 1: Pinpoint Test V: Hi Temp/Low Oil Warning Indicator Is Never/Always On-Expedition

G01493719

Courtesy of FORD MOTOR CO.
