Removal and Installation

NOTE: For Expedition headlamp and dimmer switch removal, refer to EXTERIOR LIGHTING .

Remove the instrument panel finish panel.
- Disconnect the electrical connectors.

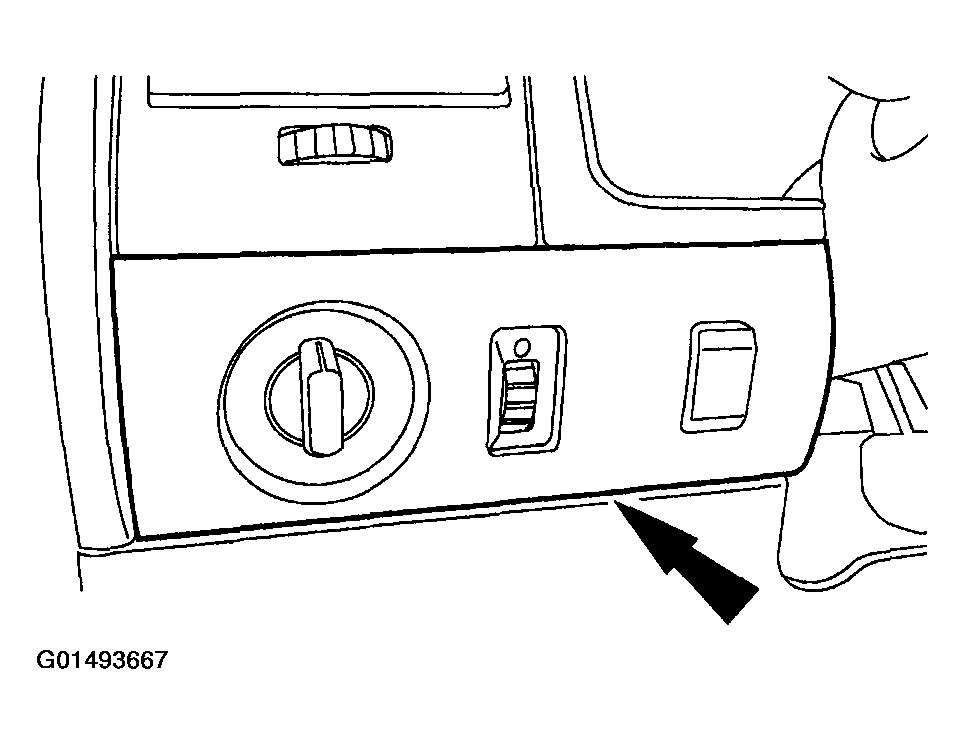

  Fig 1: Removing Instrument Panel Finish Panel
  Courtesy of FORD MOTOR CO.
Depress the tabs and remove the instrument panel dimmer switch.

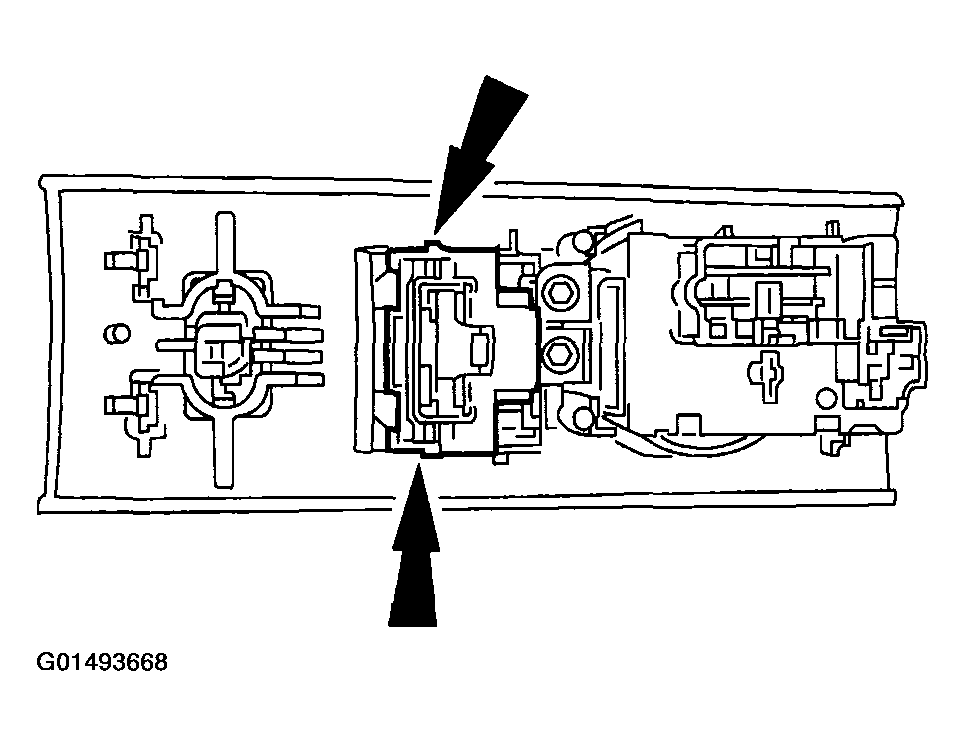

Fig 2: Removing Instrument Panel Dimmer Switch
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
