Pinpoint Test E: A Single Illumination Source Is Inoperative

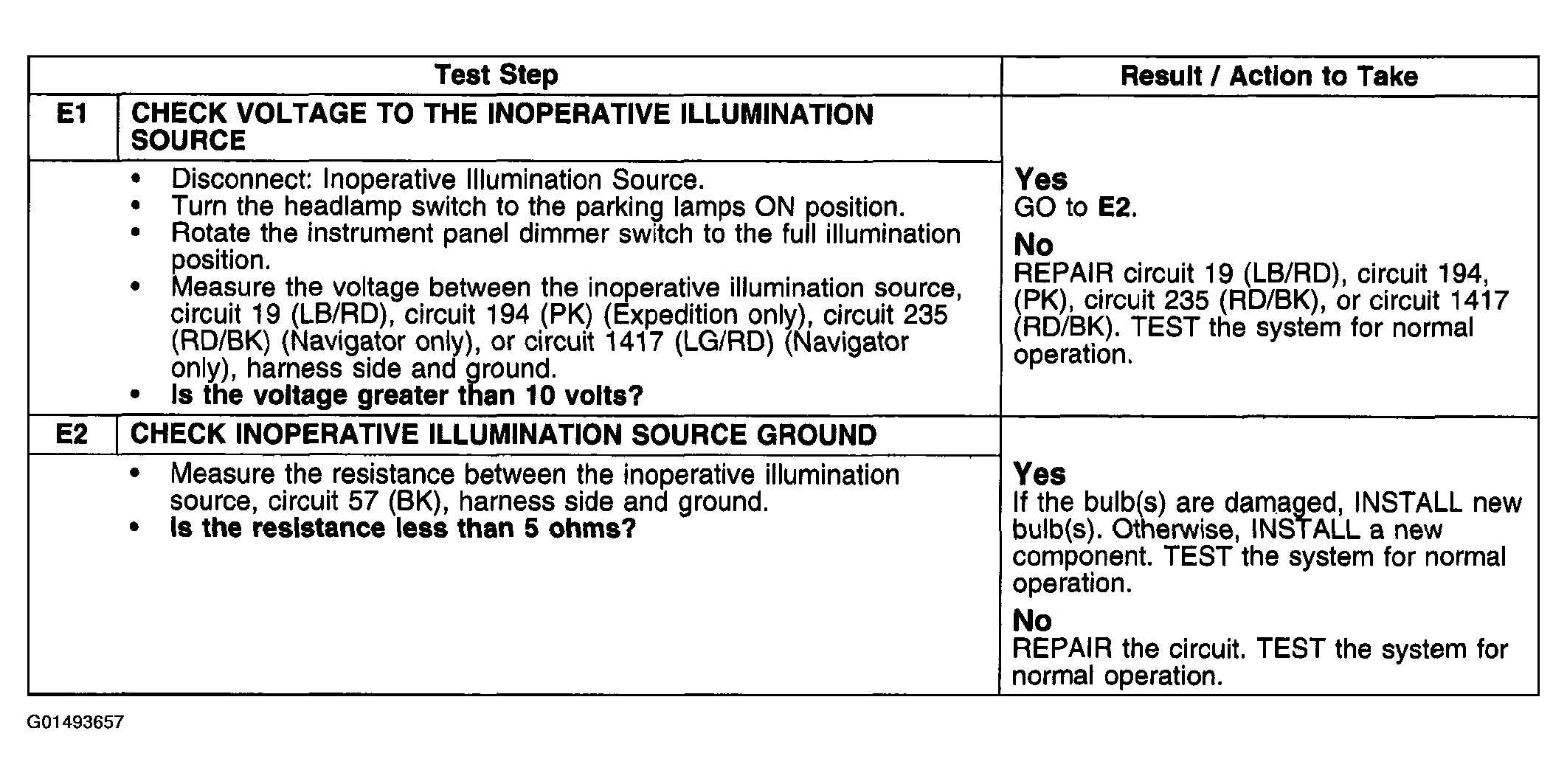

Fig 1: Pinpoint Test E: A Single Illumination Source Is Inoperative

G01493657

Courtesy of FORD MOTOR CO.
