Pinpoint Test C: Climate Control Illumination Is Inoperative

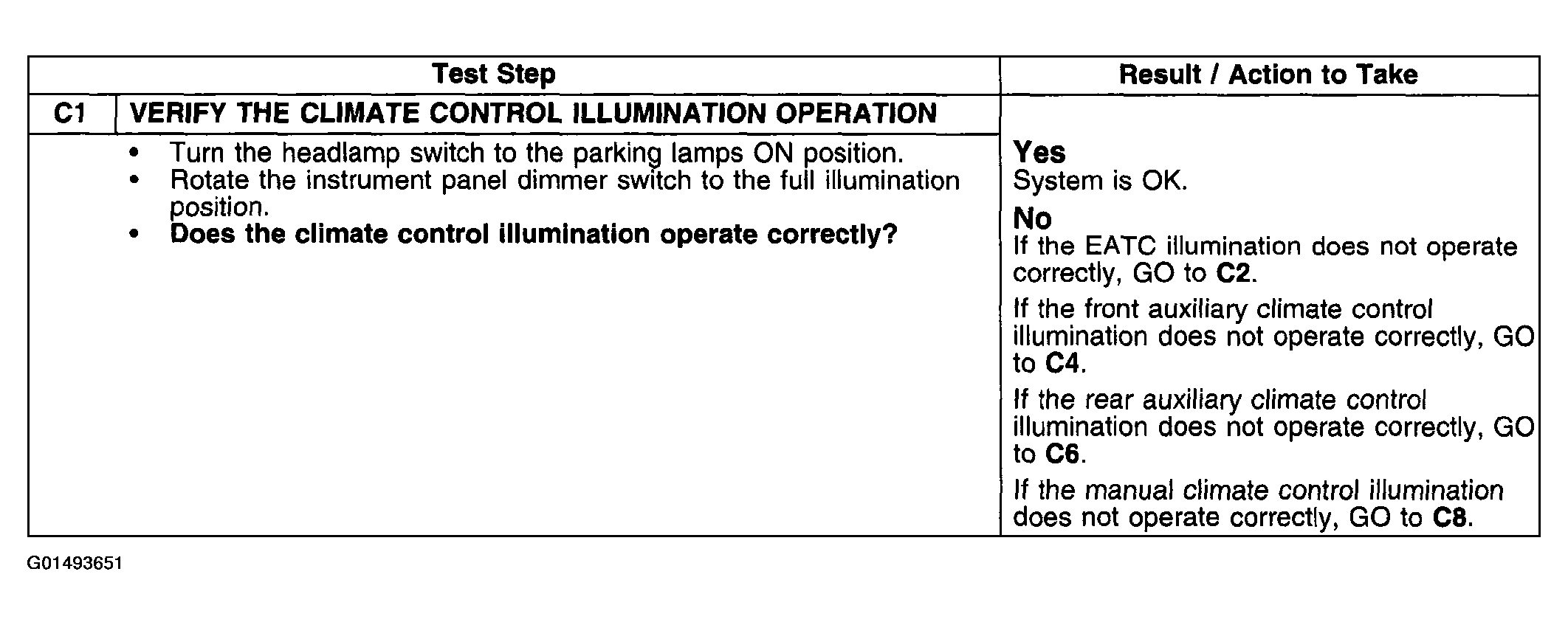

Fig 1: Pinpoint Test C: Climate Control Illumination Is Inoperative (C1)
G01493651Courtesy of FORD MOTOR CO.

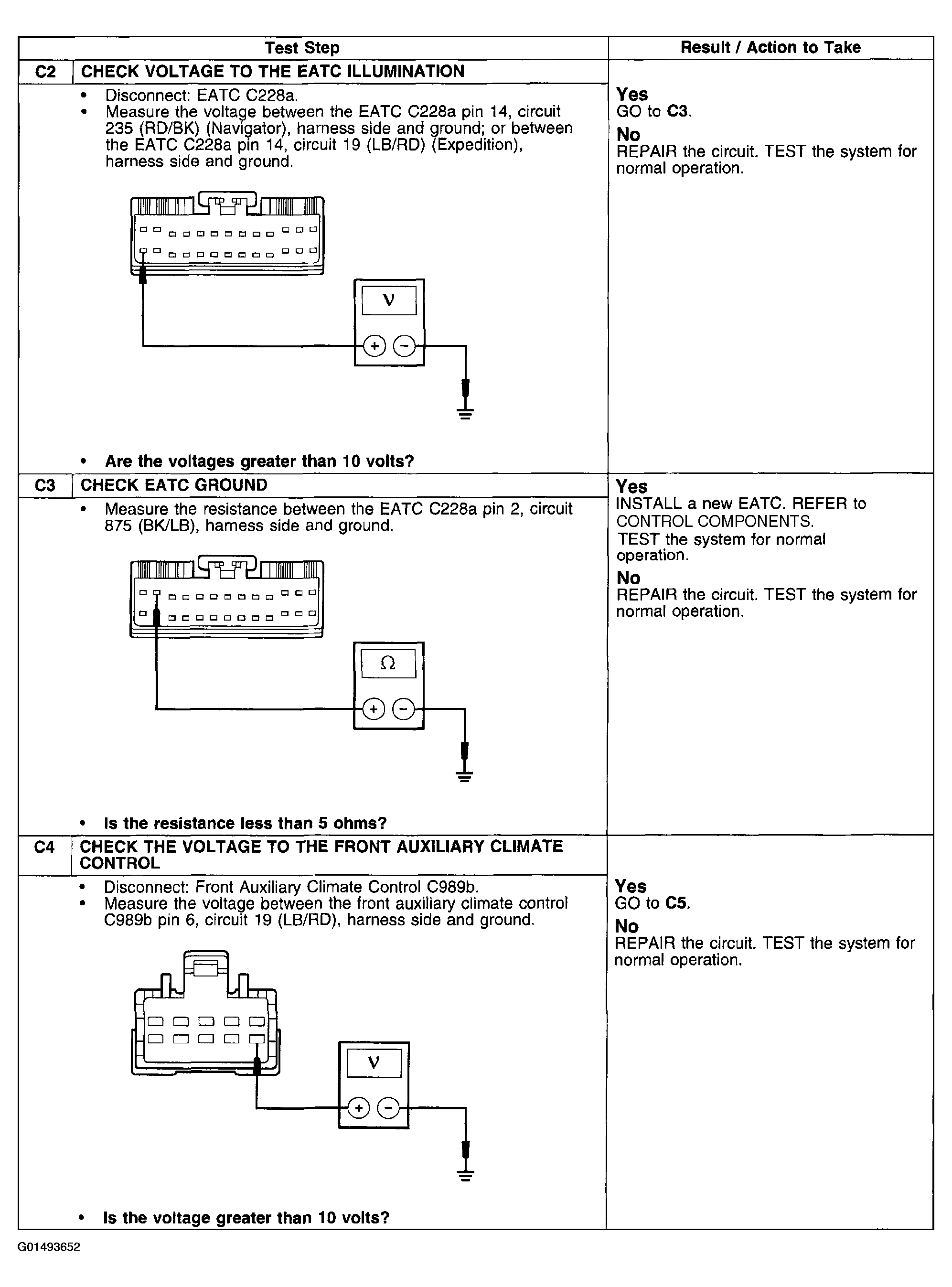

Fig 2: Pinpoint Test C: Climate Control Illumination Is Inoperative (C2-C4)
G01493652Courtesy of FORD MOTOR CO.

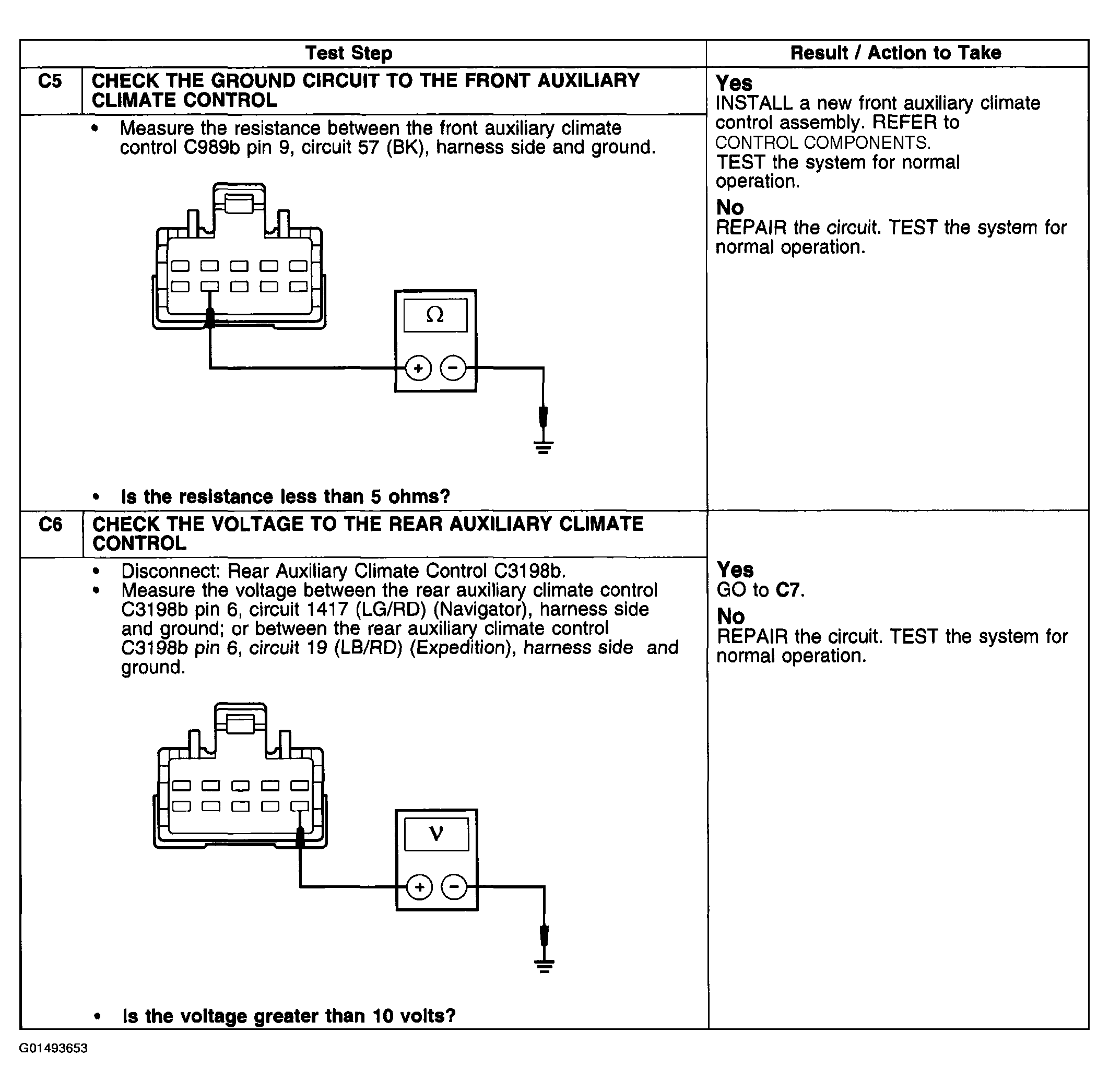

Fig 3: Pinpoint Test C: Climate Control Illumination Is Inoperative (C5-C6)
G01493653Courtesy of FORD MOTOR CO.

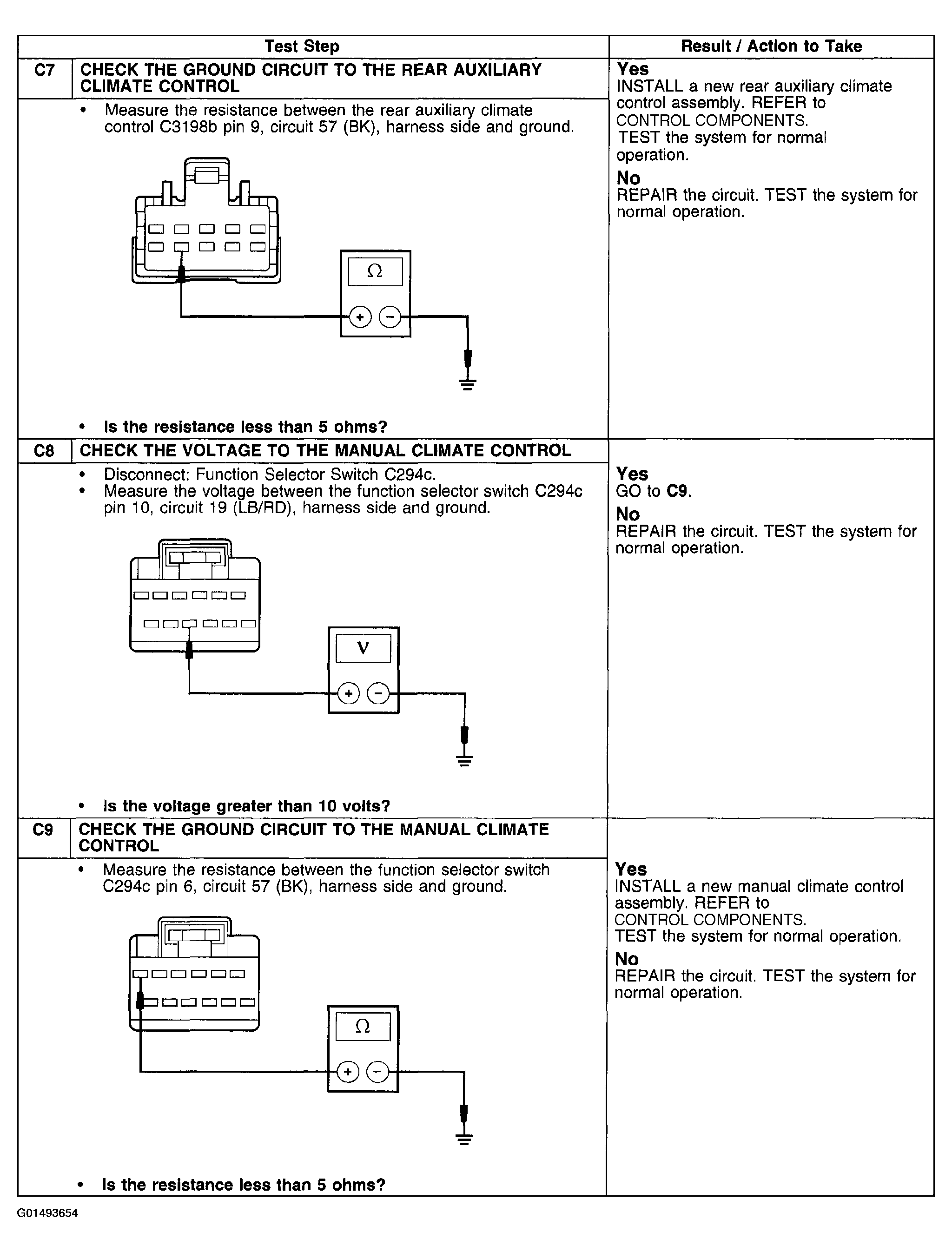

Fig 4: Pinpoint Test C: Climate Control Illumination Is Inoperative (C7-C9)
G01493654Courtesy of FORD MOTOR CO.
