Pinpoint Test B: Instrument Cluster Illumination Is Inoperative

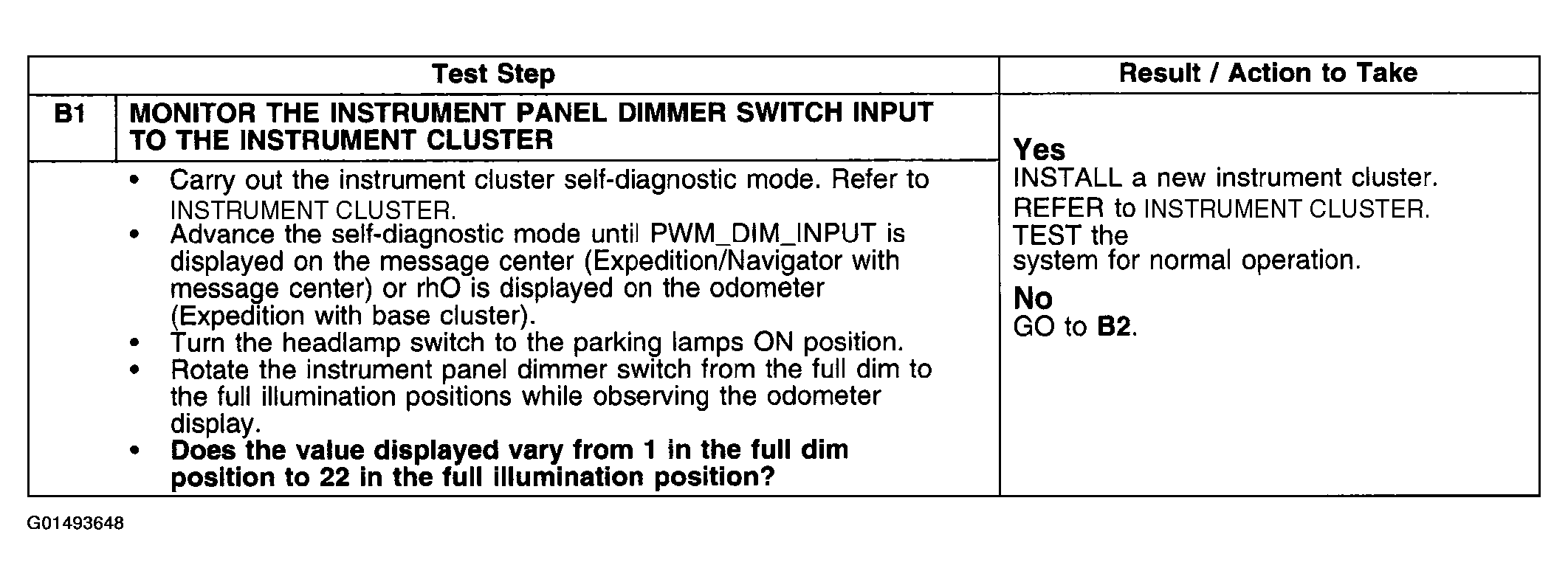

Fig 1: Pinpoint Test B: Instrument Cluster Illumination Is Inoperative (B1)
G01493648Courtesy of FORD MOTOR CO.

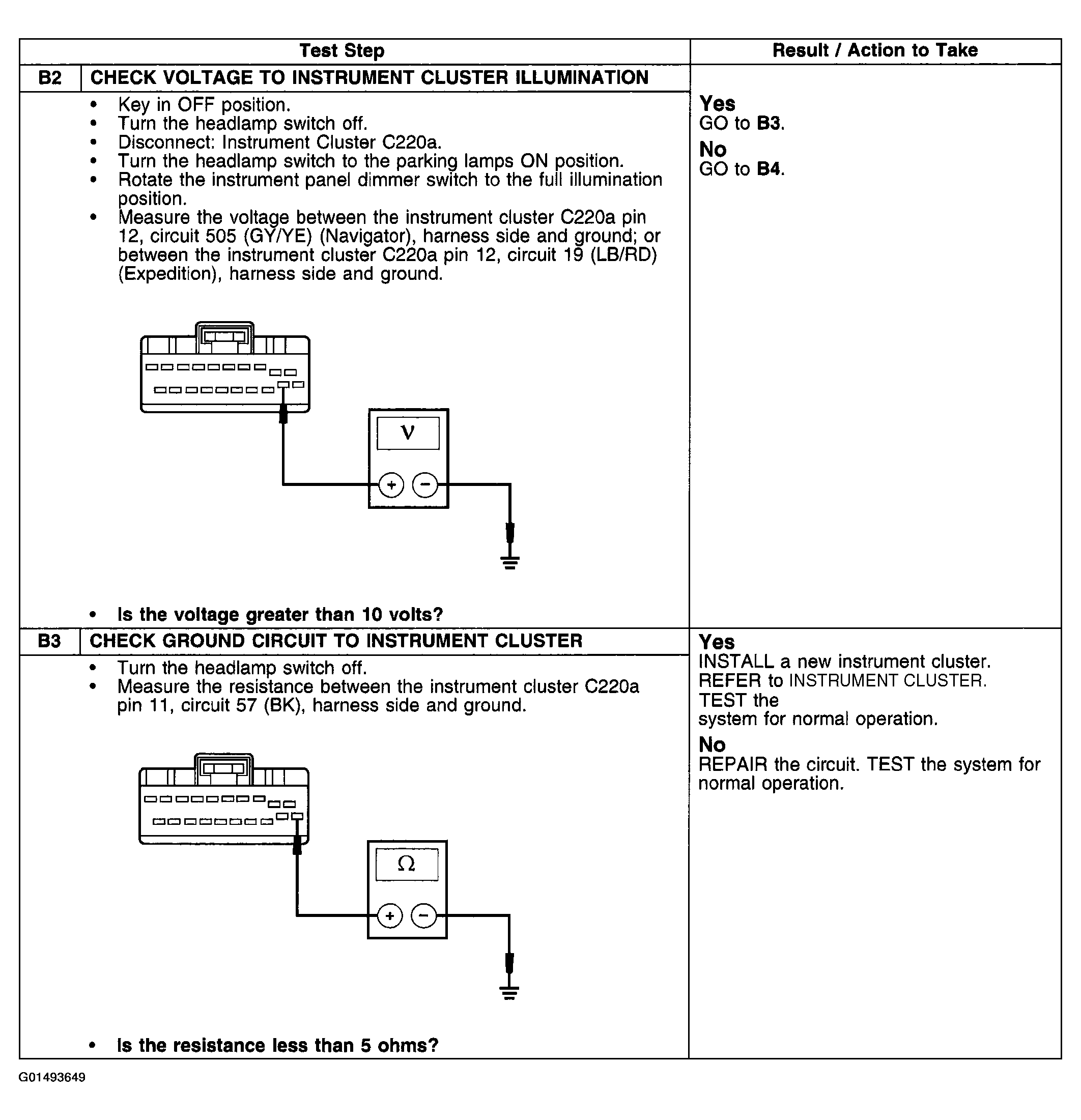

Fig 2: Pinpoint Test B: Instrument Cluster Illumination Is Inoperative (B2-B3)
G01493649Courtesy of FORD MOTOR CO.

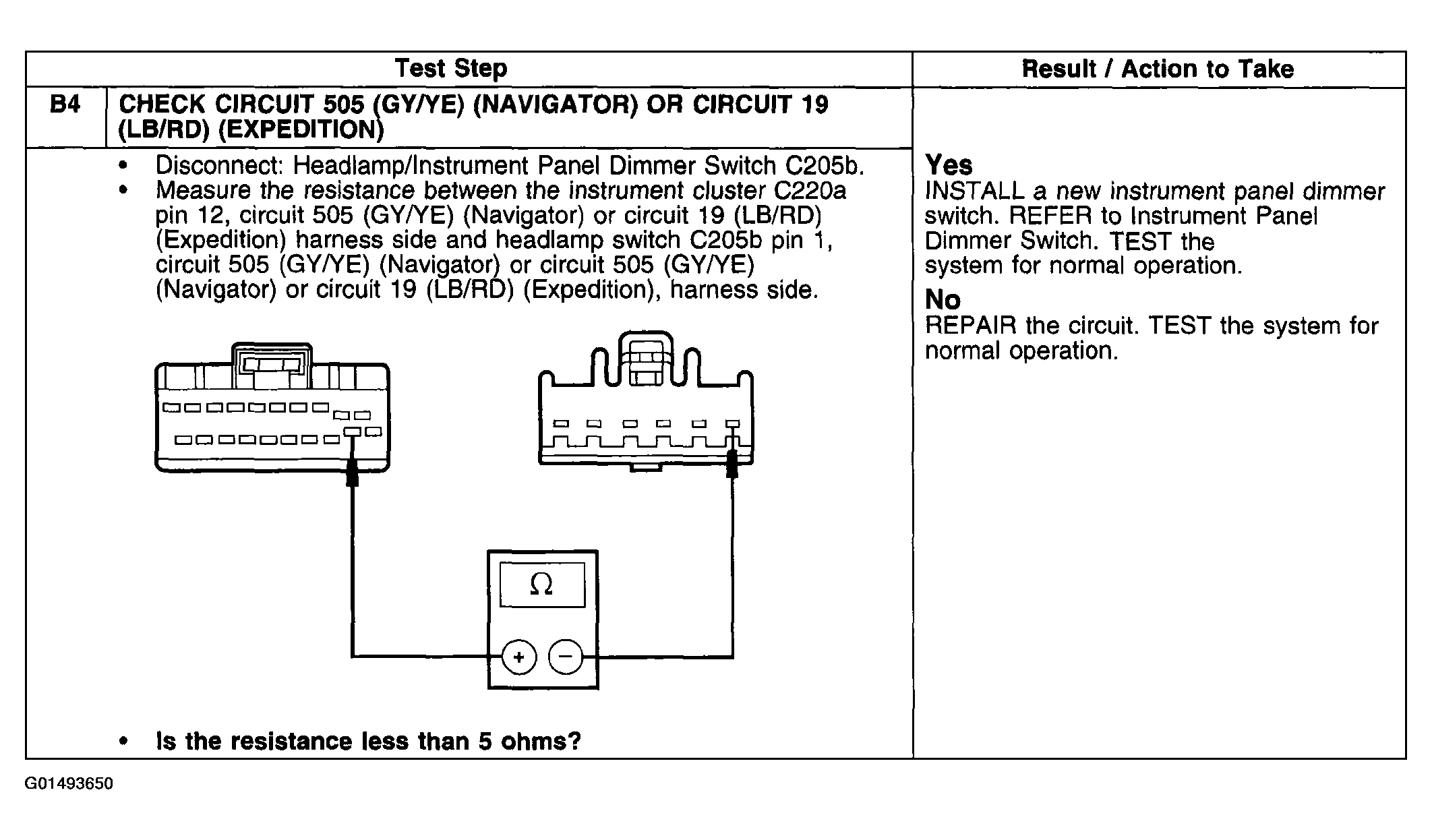

Fig 3: Pinpoint Test B: Instrument Cluster Illumination Is Inoperative (B4)
G01493650Courtesy of FORD MOTOR CO.
