Instrument Cluster-Navigator

The Navigator instrument cluster consists of the following gauges and indicators:

NOTE: The English cluster is shown, the metric cluster is similar.

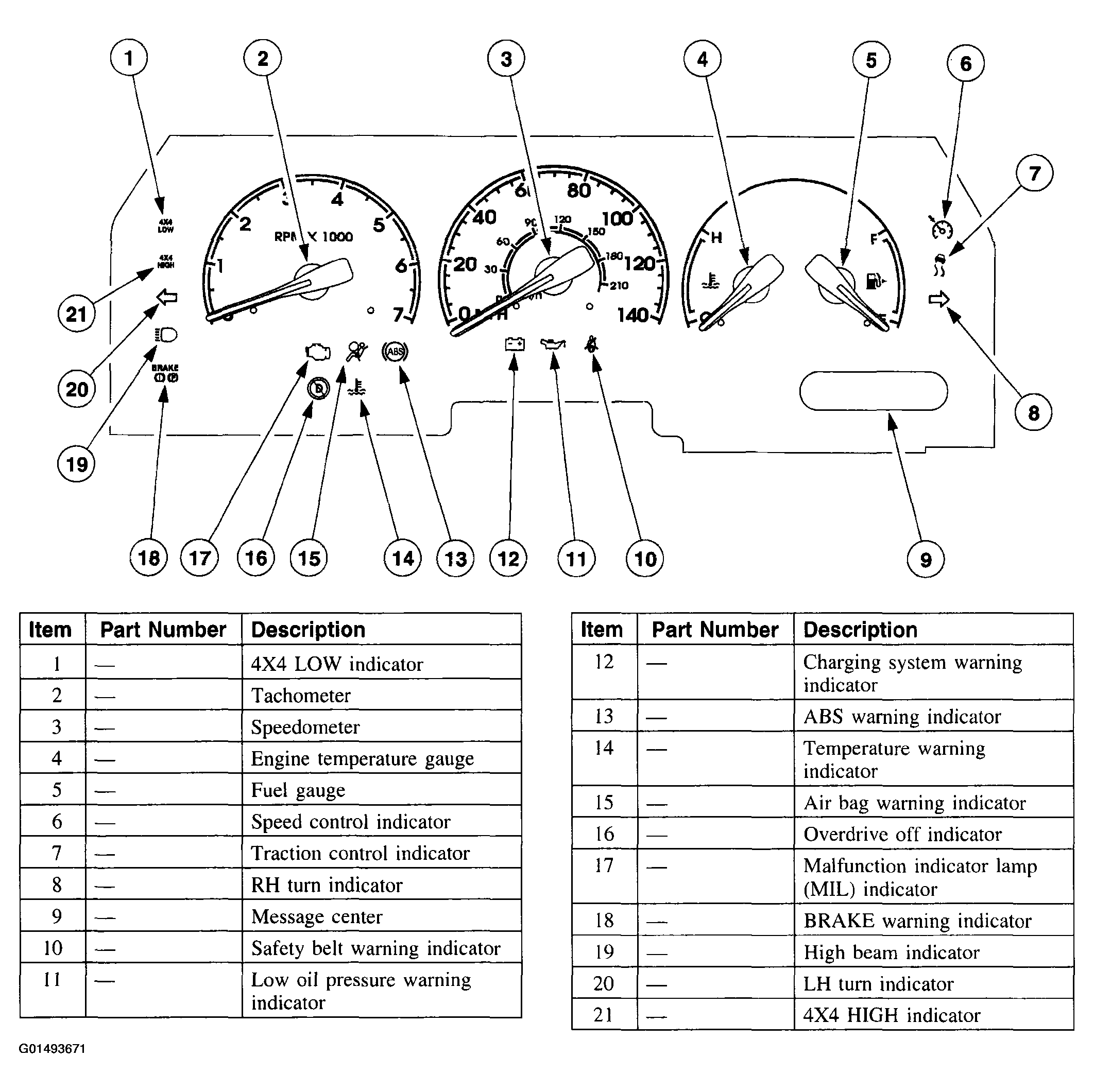

Fig 1: Locating Instrument Cluster Components (Navigator)

Courtesy of FORD MOTOR CO.
