Parking aid Switch: Notes

  1. Remove the components in the order indicated in Fig 1.

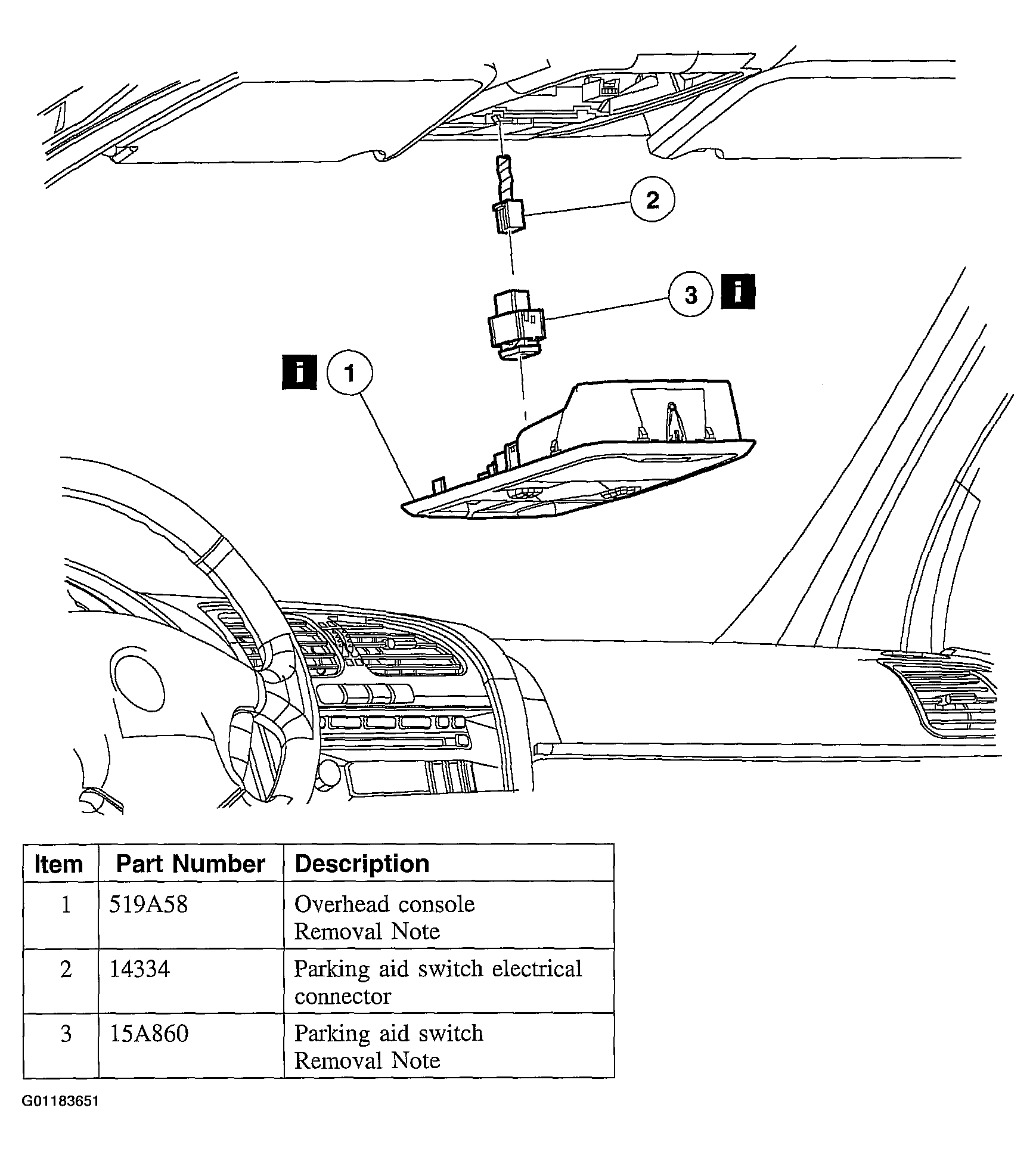

    Fig 1: Removing Sequence Of Parking Aid Switch
    G01183651Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
