Parking Aid Module

  1. Remove the parcel shelf. For additional information, Refer to BODY SYSTEM - INTERIOR .
  2. Remove the components in the order indicated in Fig 1.

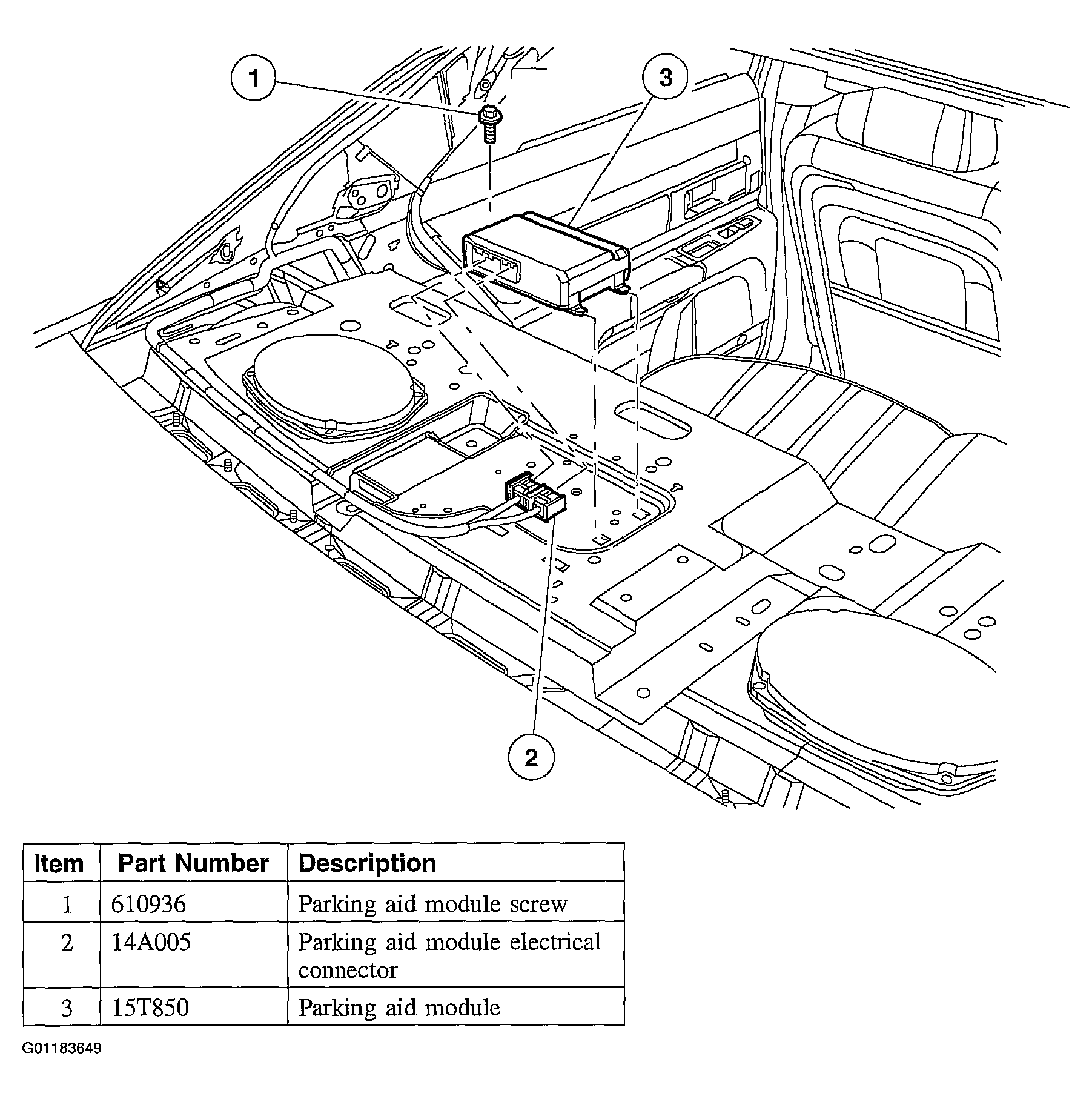

    Fig 1: Removing Sequence Of Parking Aid Module
    G01183649Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
