Home >> Lincoln >> 2003 >> LS 3.0 S >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Information, Gauges And Warning Devices >> Removal And Installation >> Massage Center >> Notes

Massage Center: Notes

  1. Remove the components in the order indicated in Fig 1.

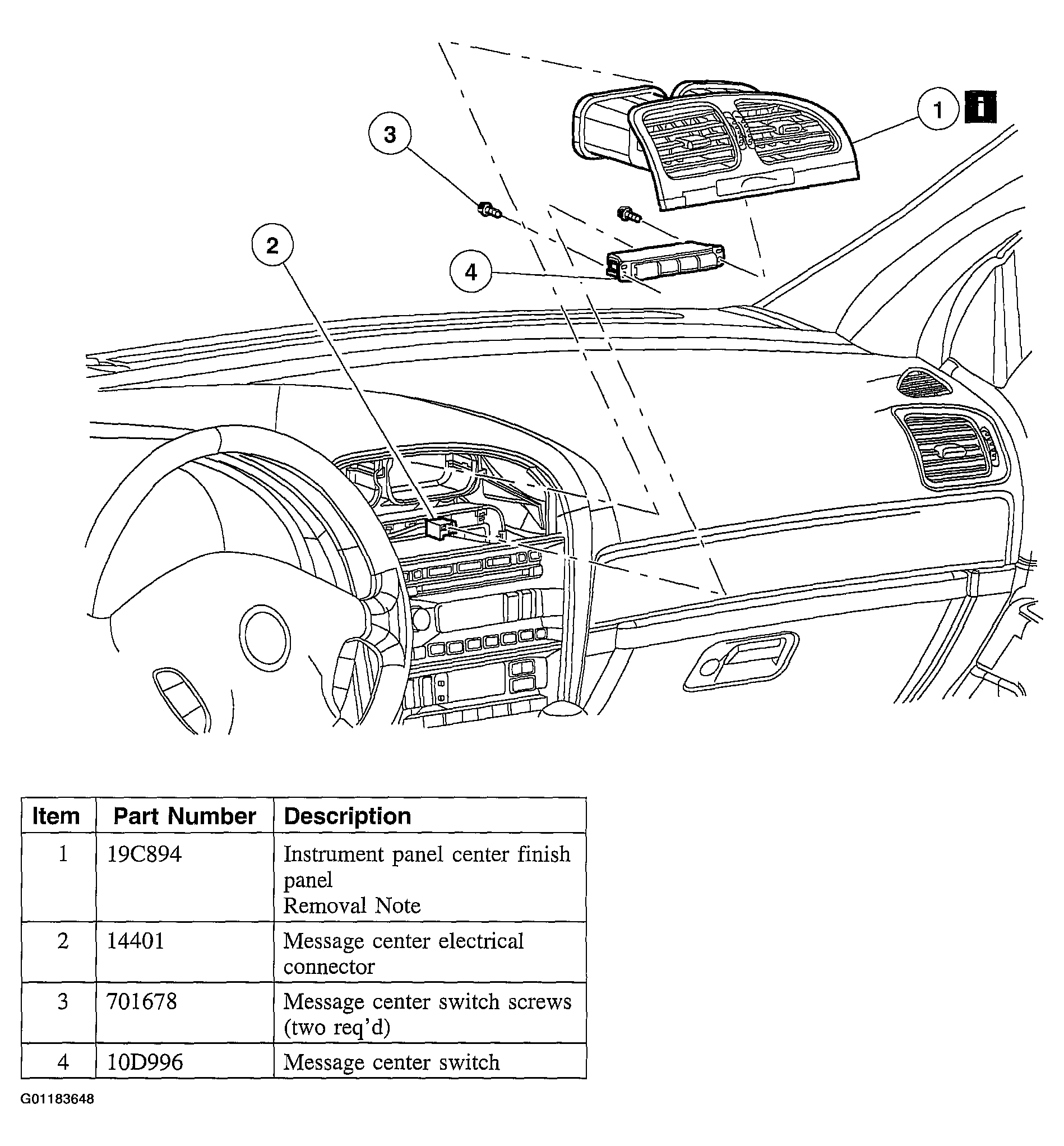

    Fig 1: Removing Sequence Of Massage Center
    G01183648Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
