Instrument Cluster and panel Illumination: Notes

  1. Remove the instrument panel steering column cover. For additional information, Refer to BODY SYSTEM - INTERIOR .
  2. Remove the components in the order indicated in Fig 1.

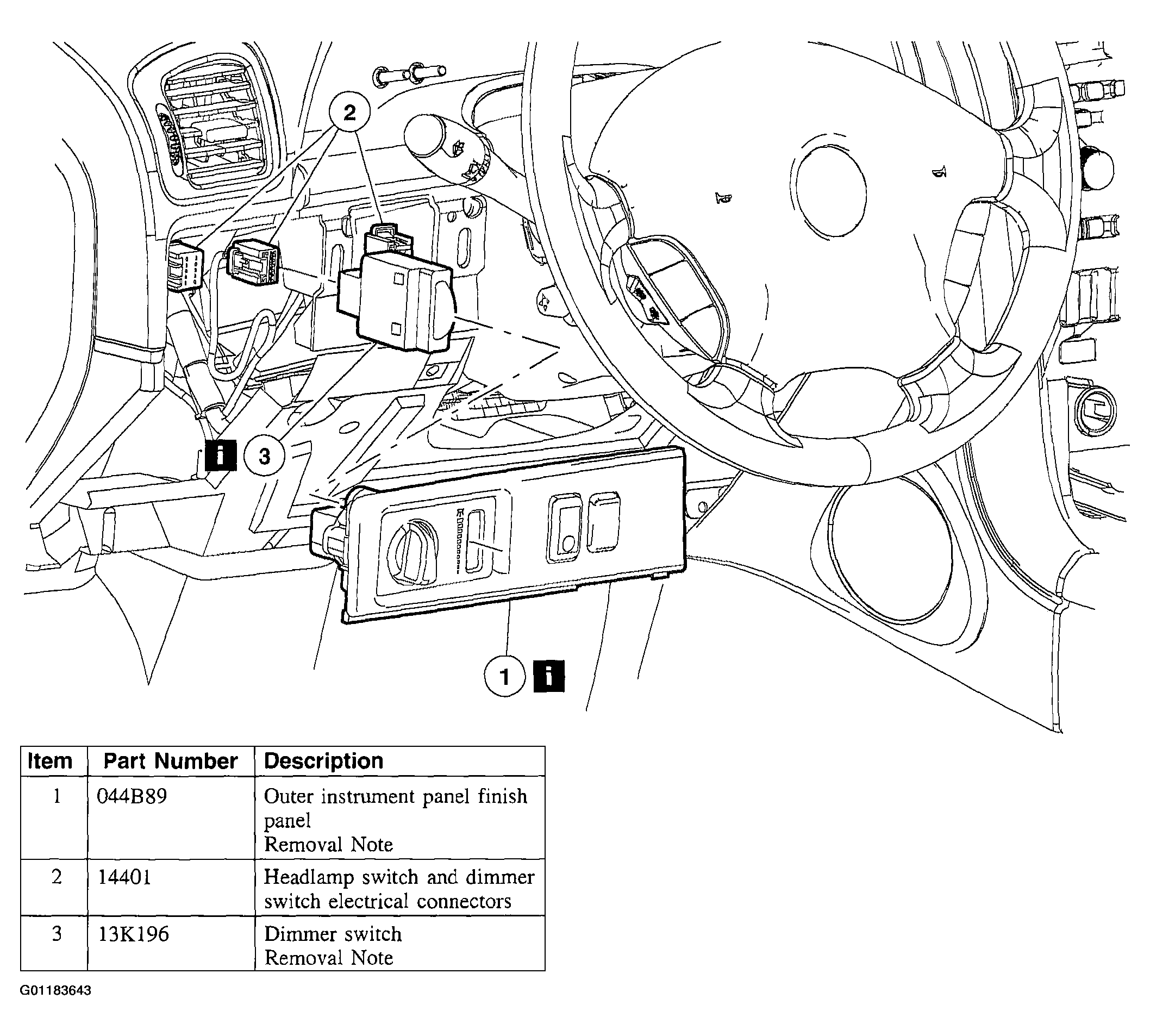

    Fig 1: Removing Sequence Of Instrument Cluster And Panel Illumination Components
    G01183643Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
