Pinpoint Test BB: No Communication With The Parking Aid Module

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

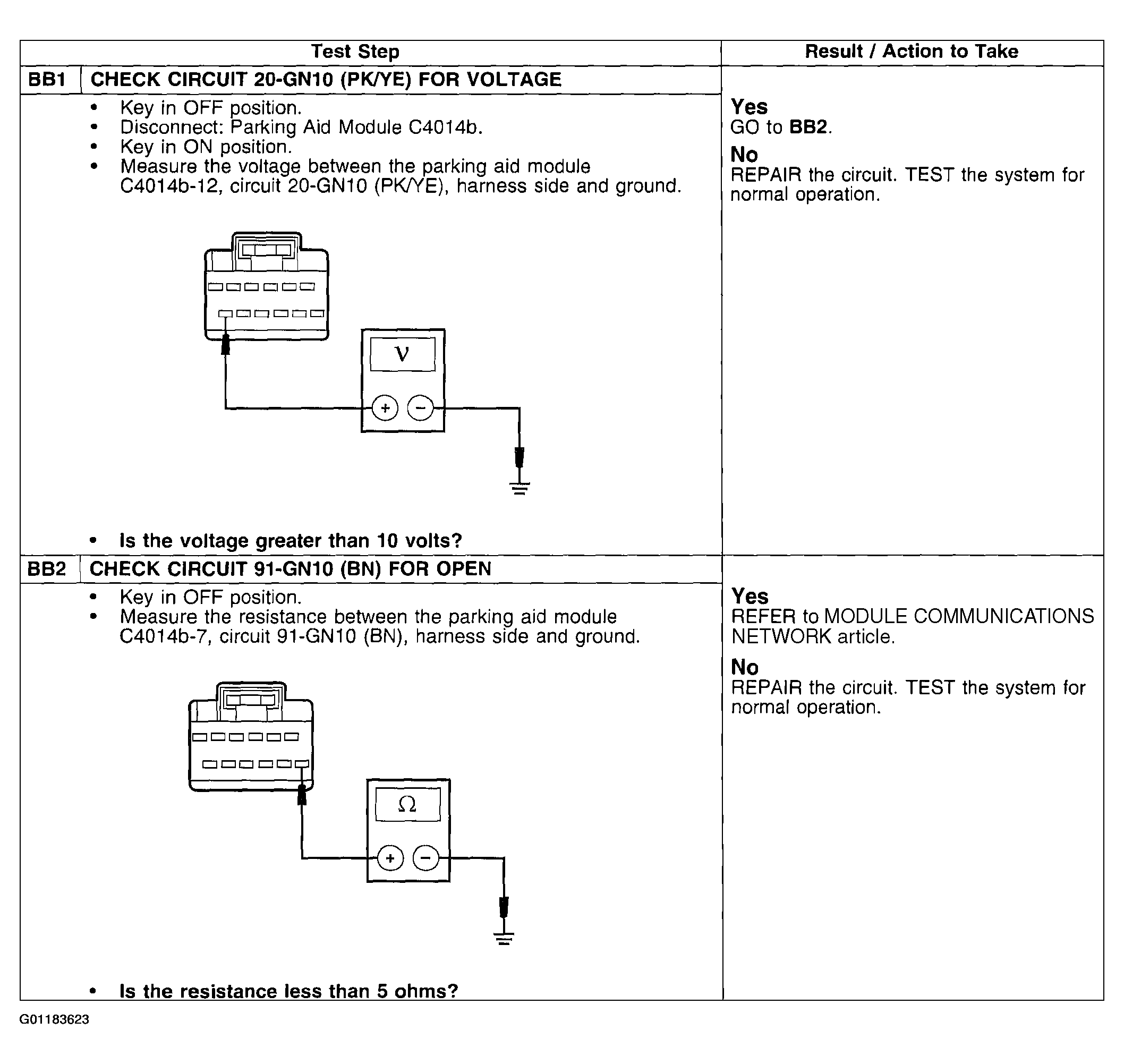

Fig 1: Pinpoint Test BB: No Communication With Parking Aid Module (Steps BB1-BB2)
G01183623Courtesy of FORD MOTOR CO.
