Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Information, Gauges And Warning Devices
>>
Diagnosis And Testing
>>
Instrument Cluster
>>
Pinpoint Test U: The Traction Control And Advance Traction Control Indicators Are Never/Always On
>>
Possible Causes
Possible Causes
ABS/TC/IVD or ABS/TC module
instrument cluster

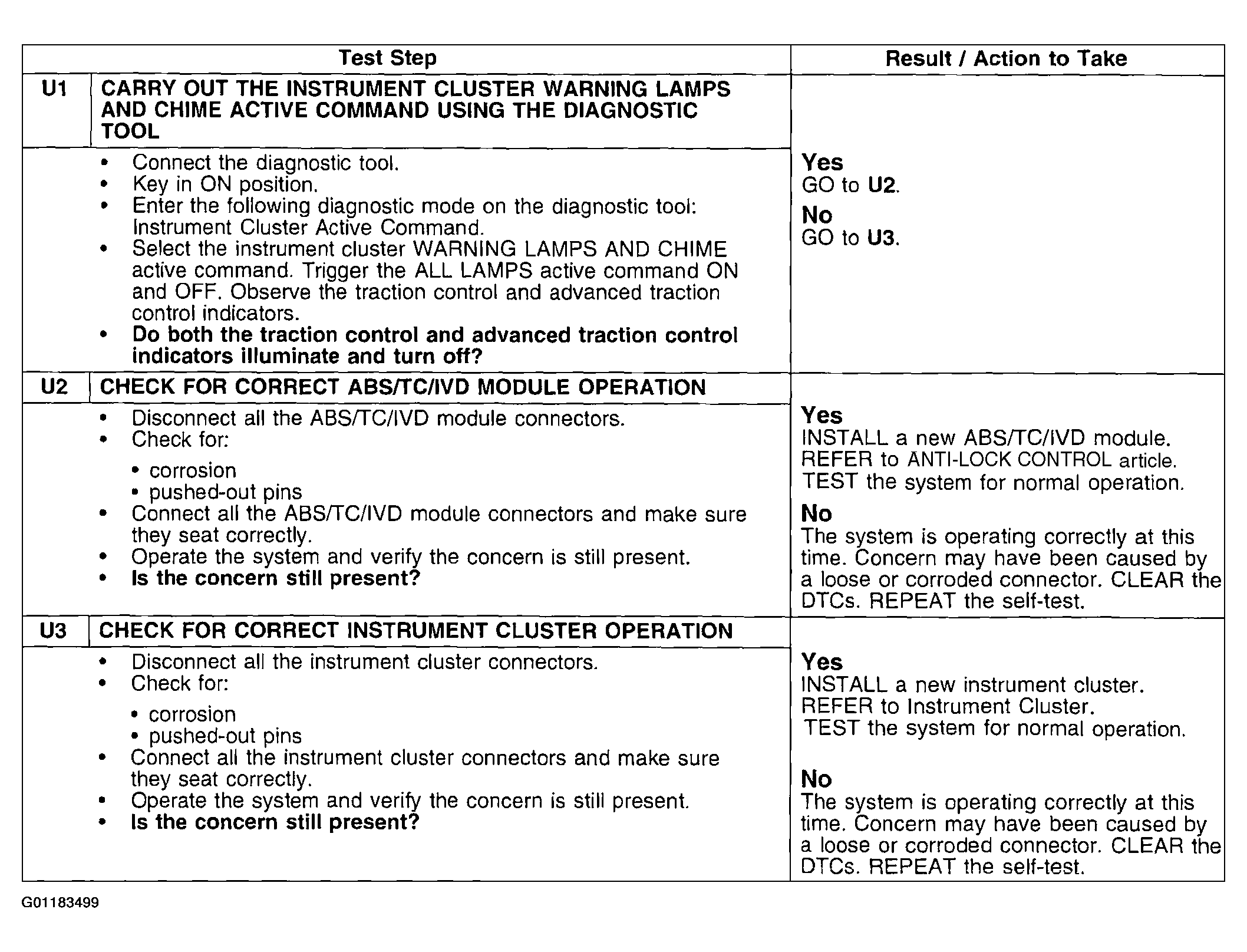

Fig 1: Pinpoint Test U: Traction Control And Advance Traction Control Indicators Are Never/Always On (Steps U1-U3)
Courtesy of FORD MOTOR CO.
