Pinpoint Test AE: The Instrument Cluster Is Inoperative

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

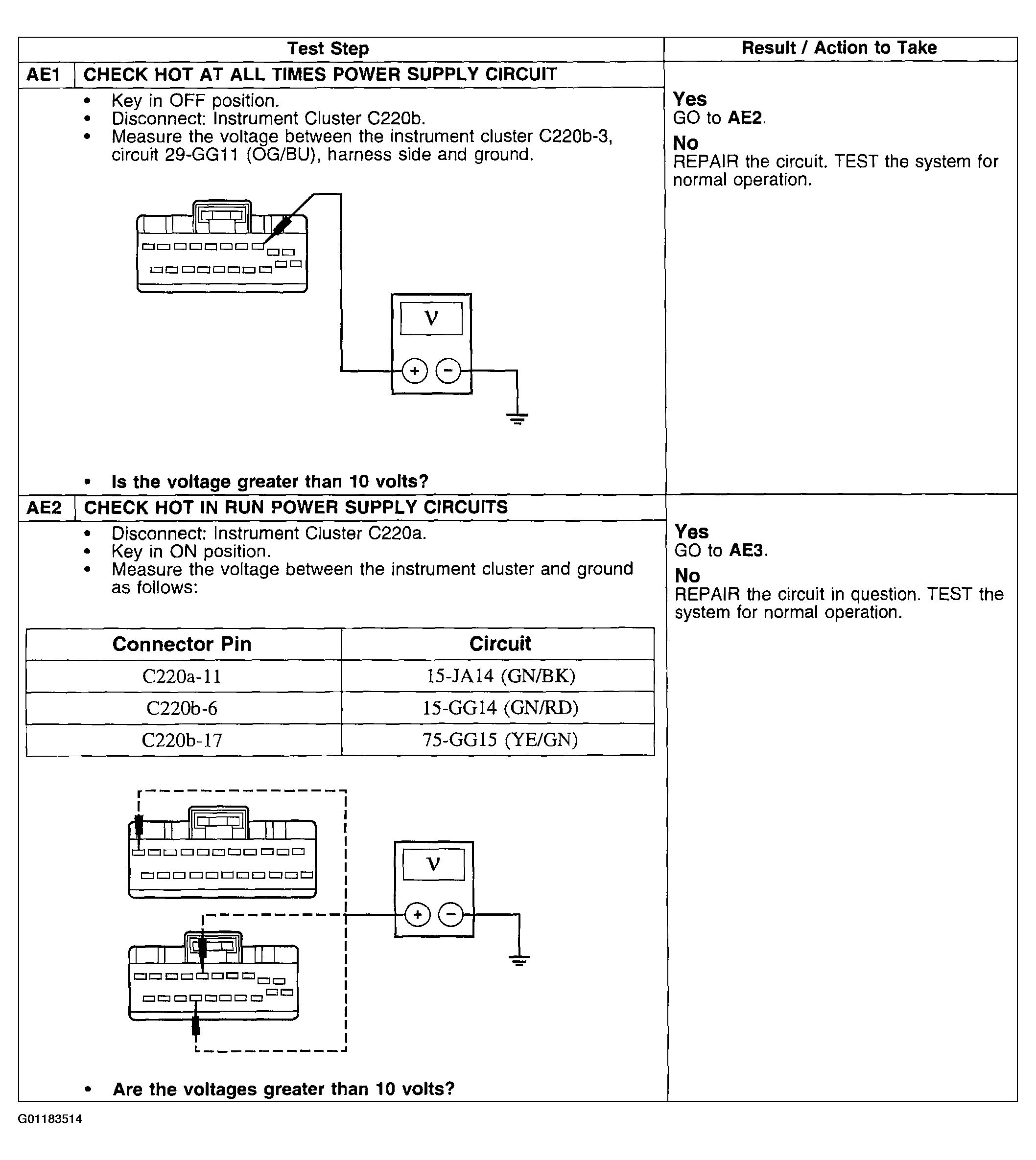

Fig 1: Pinpoint Test AE: Instrument Cluster Is Inoperative (Steps AE1-AE2)
G01183514Courtesy of FORD MOTOR CO.

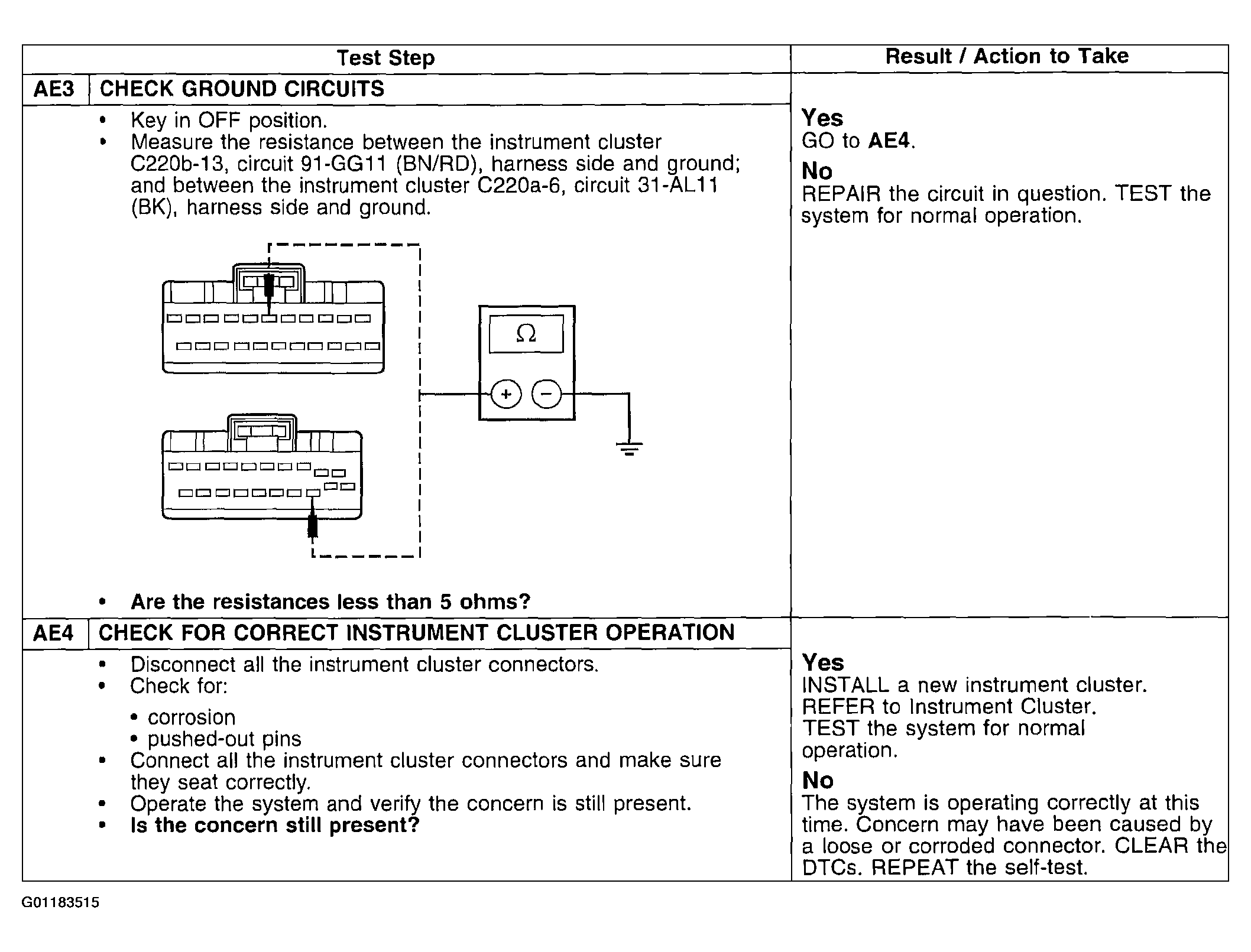

Fig 2: Pinpoint Test AE: Instrument Cluster Is Inoperative (Steps AE3-AE4)
G01183515Courtesy of FORD MOTOR CO.
