Pinpoint Test Ad: The Integrated Circuit Display Is Inoperative

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

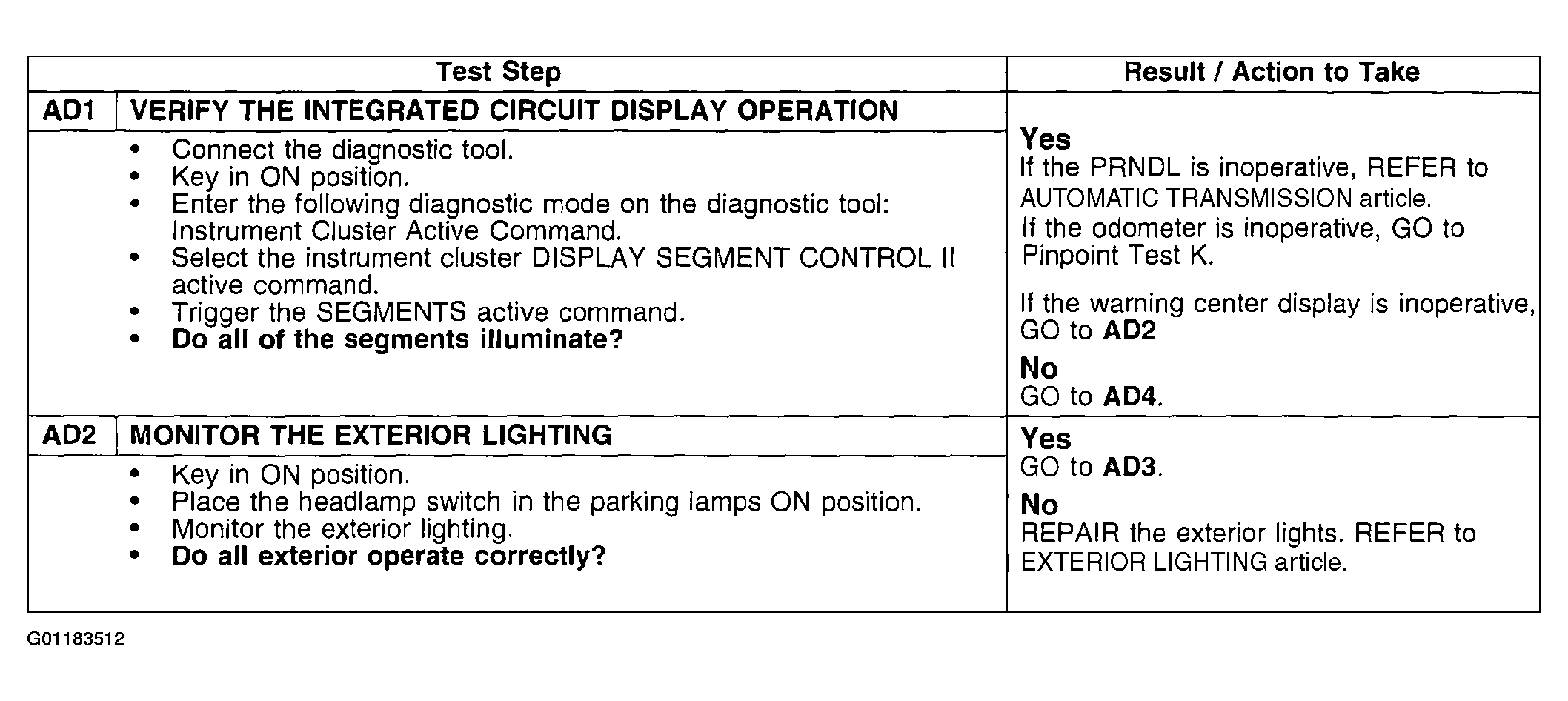

Fig 1: Pinpoint Test AD: Integrated Circuit Display Is Inoperative (Steps AD1-AD2)
G01183512Courtesy of FORD MOTOR CO.

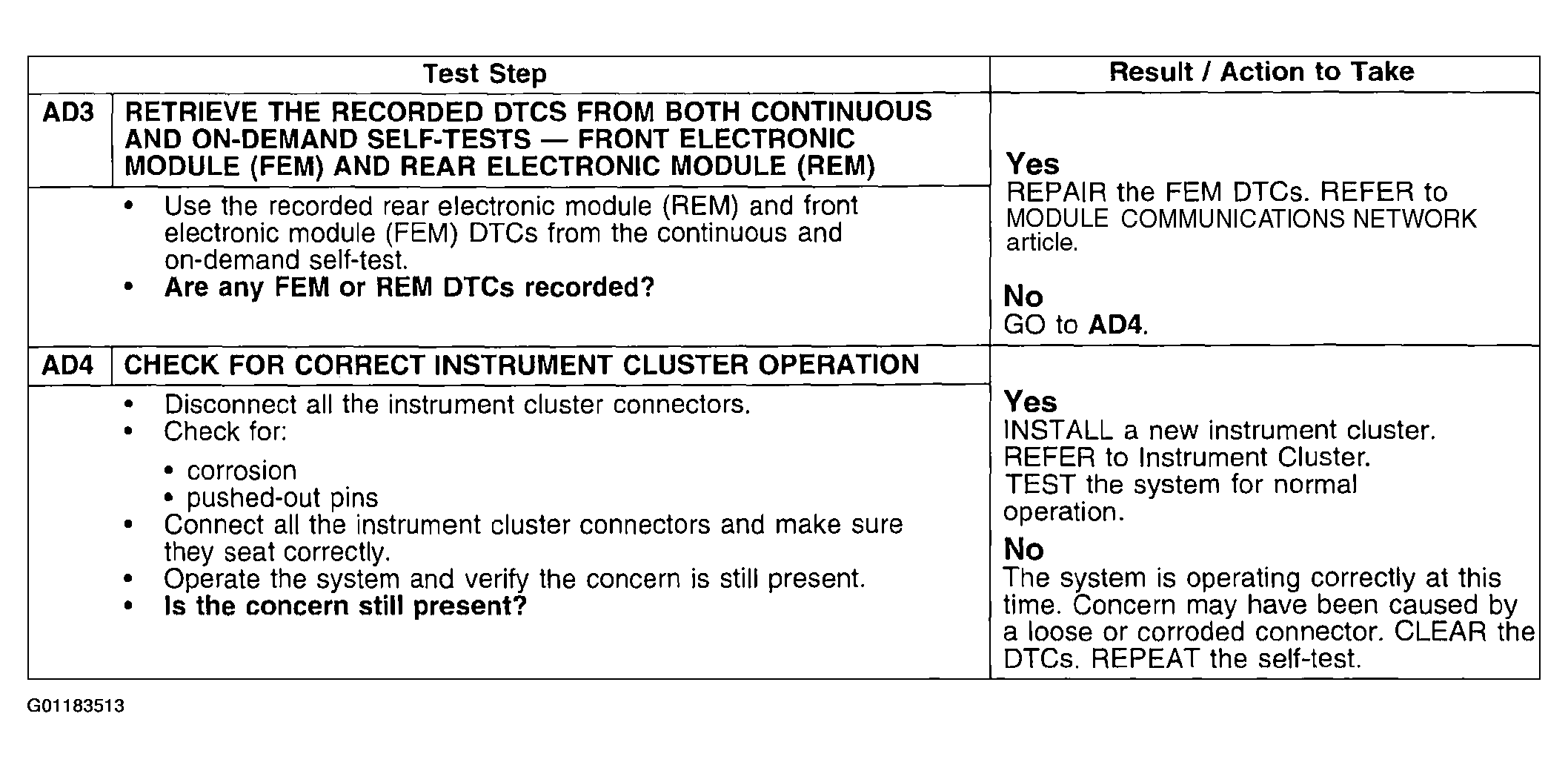

Fig 2: Pinpoint Test AD: Integrated Circuit Display Is Inoperative (Steps AD3-AD4)
G01183513Courtesy of FORD MOTOR CO.
