Window Control Switch C701 (LR) and C801 (RR)

Fig 1: Identifying Window Control Switch C701 (LR) And C801 (RR) Connector Pinouts
G01183385Courtesy of FORD MOTOR CO.

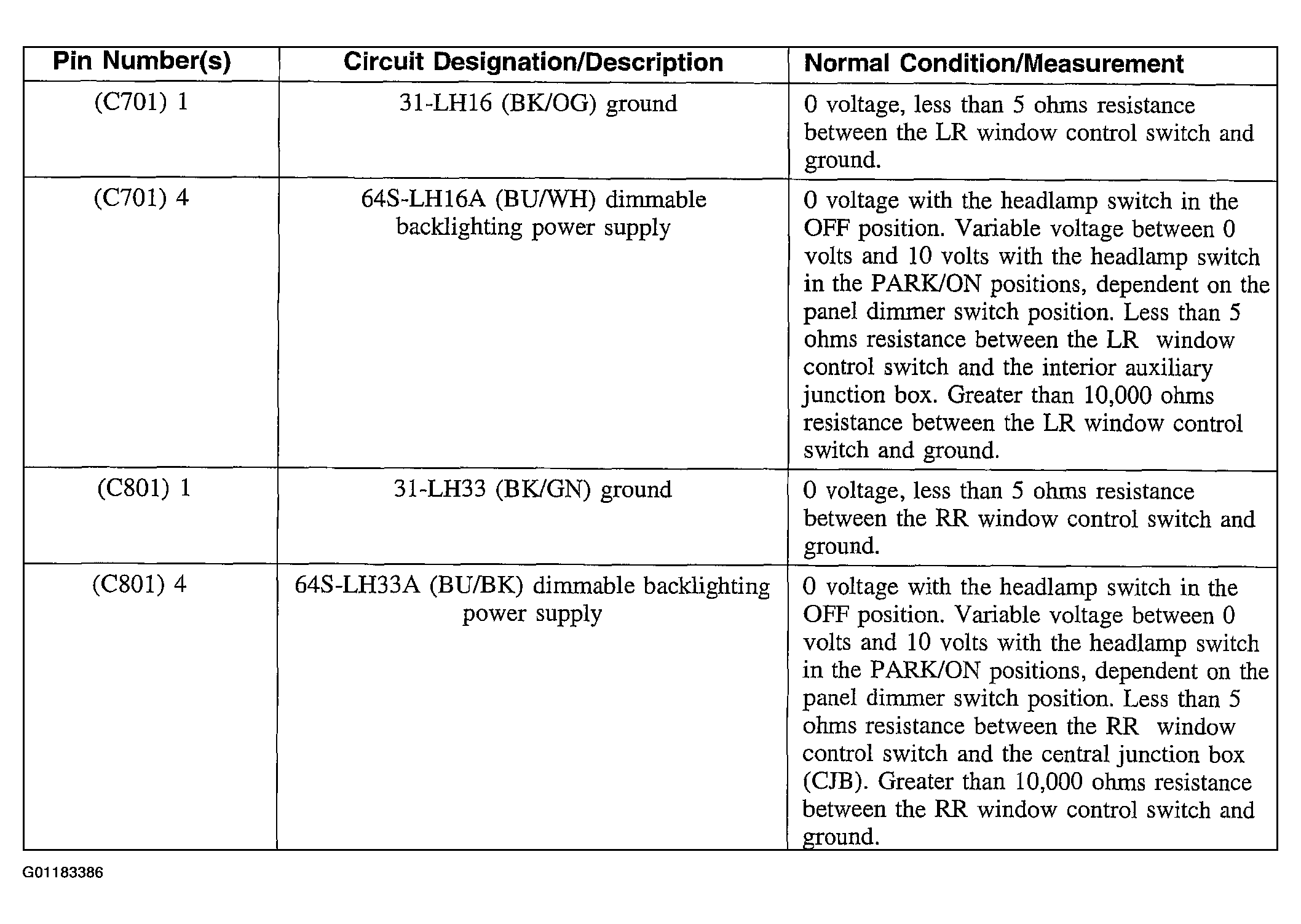

Fig 2: Window Control Switch C701 (LR) And C801 (RR) Connector Pin Reference Chart
G01183386Courtesy of FORD MOTOR CO.
