Traction Control (TC) Switch C3208

Fig 1: Identifying Traction Control (TC) Switch C3208 Connector Pinouts
G01183394Courtesy of FORD MOTOR CO.

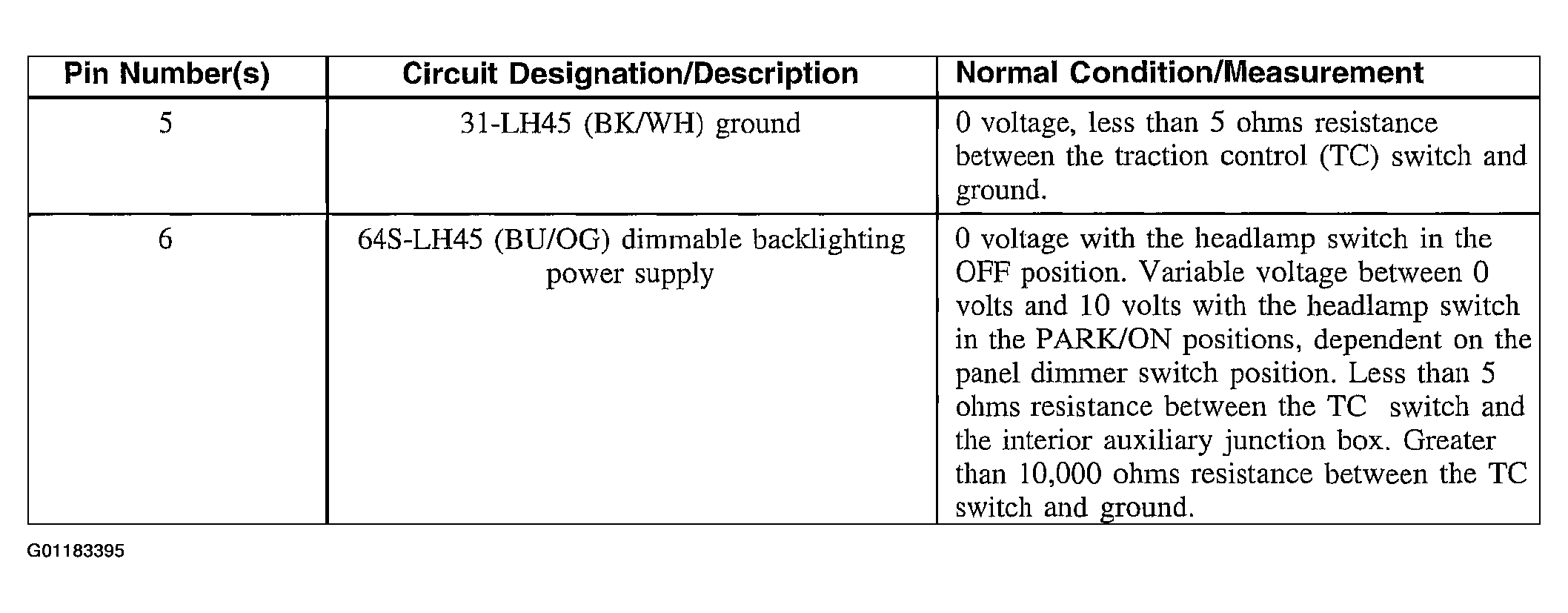

Fig 2: Traction Control (TC) Switch C3208 Connector Pin Reference Chart
G01183395Courtesy of FORD MOTOR CO.
