RF Window Control Switch C604

Fig 1: Identifying RF Window Control Switch C604 Connector Pinouts
G01183383Courtesy of FORD MOTOR CO.

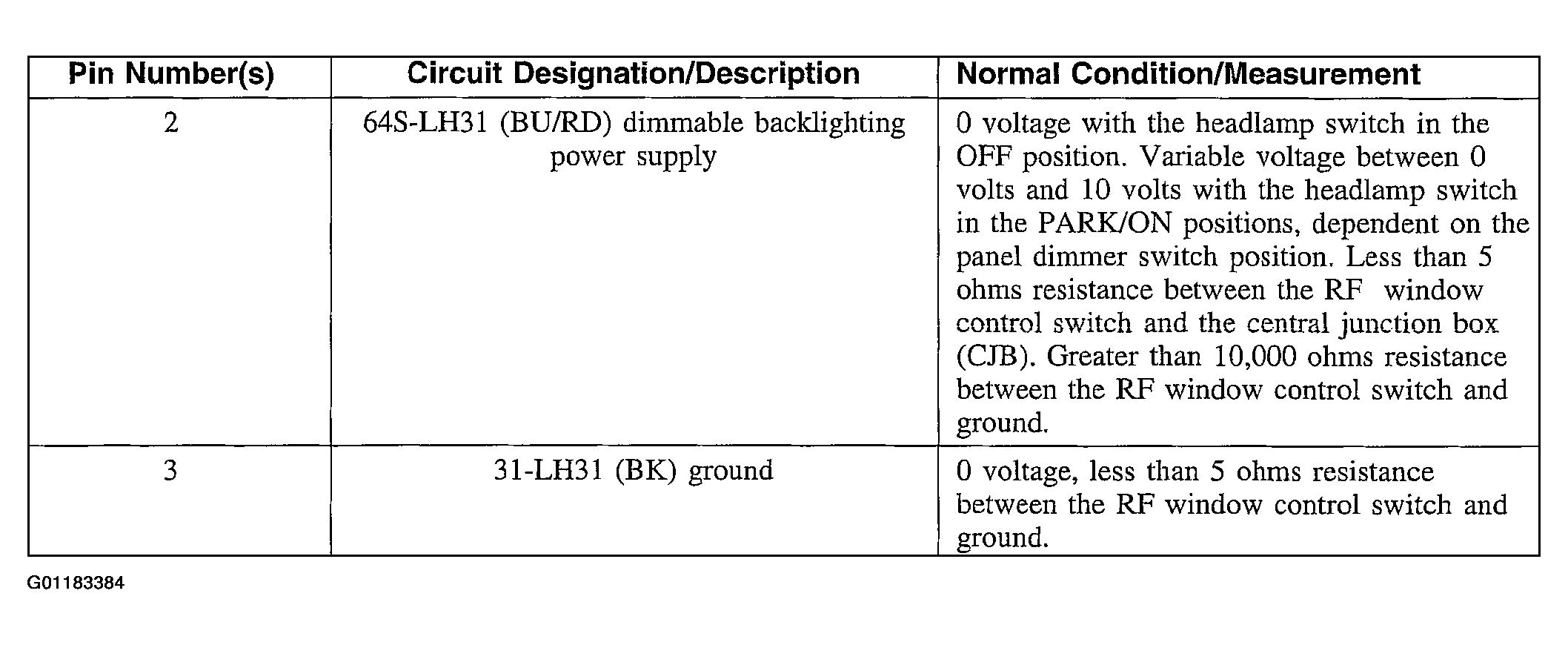

Fig 2: RF Window Control Switch C604 Connector Pin Reference Chart
G01183384Courtesy of FORD MOTOR CO.
