Parking Aid Switch C9011

Fig 1: Identifying Parking Aid Switch C9011 Connector Pinouts
G01183398Courtesy of FORD MOTOR CO.

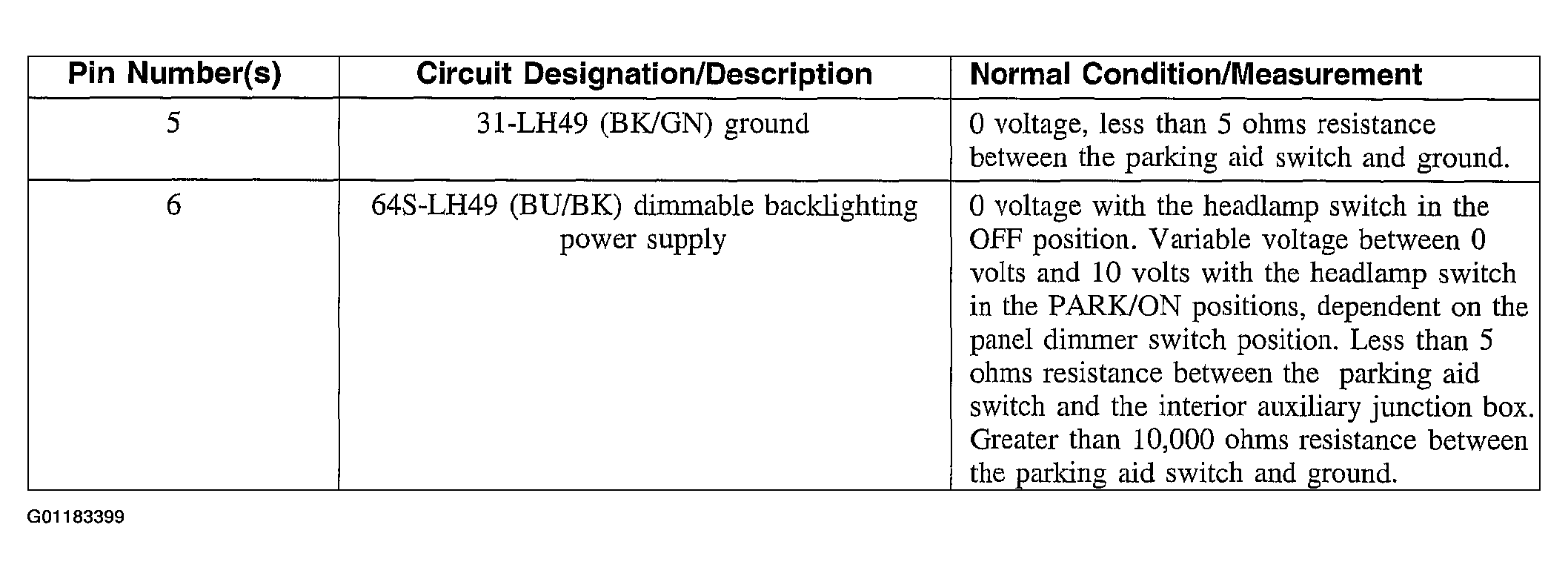

Fig 2: Parking Aid Switch C9011 Connector Pin Reference Chart
G01183399Courtesy of FORD MOTOR CO.
